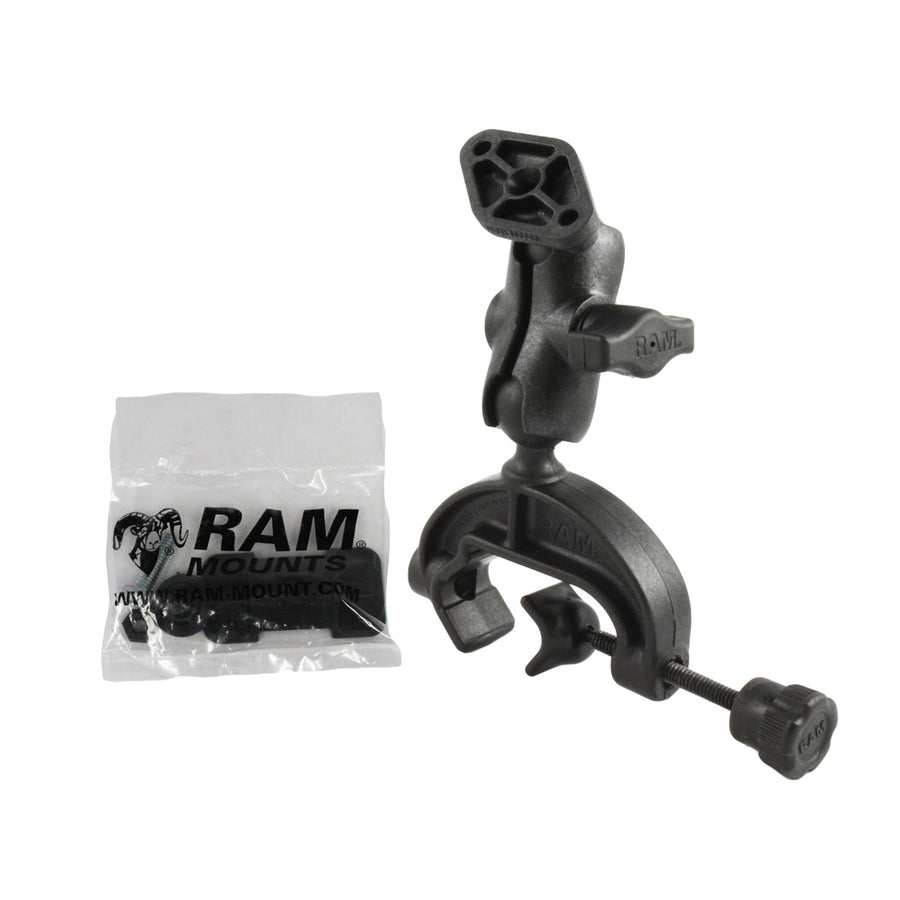

| RAM® Composite Yoke Clamp Mount with Diamond Plate - Short | |
|---|---|
|
Part #:
RAP-B-121-A-238U
UPC:
793442901560
Patented
|
|
| Product Information |
|---|
| Specifications | |
|---|---|
| hardware included | Flat Clamp Hardware Adapter |
| clamp range | .625" - 1.25" |
| socket to socket length | 1.75" |
| hole pattern | 2-Hole AMPS: 1.912" |
| ball size | B Size (1") |
| weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
| materials | High strength composite |
| packaging type | Poly Bag |
| Weight | 0.45 lb |
B Size
Short Arm
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
Holds .5 lbs.
Trail Cameras
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets
Holds 6 lbs.
Heavy Monitors
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
| Size | A Size | B Size | C Size | D Size | E Size |
|---|---|---|---|---|---|
| Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
| Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
| Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
| Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
| Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
| Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
B Size
Short Arm
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
Holds .5 lbs.
Trail Cameras
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets
Holds 6 lbs.
Heavy Monitors
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
| Size | A Size | B Size | C Size | D Size | E Size |
|---|---|---|---|---|---|
| Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
| Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
| Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
| Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
| Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
| Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-B-121-A-238U!
We'll email you once the item is available.
Flat Clamp Hardware Adapter
.625" - 1.25"
1.75"
2-Hole AMPS: 1.912"
B Size (1")
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
High strength composite
Poly Bag
0.45 lb
