Overview

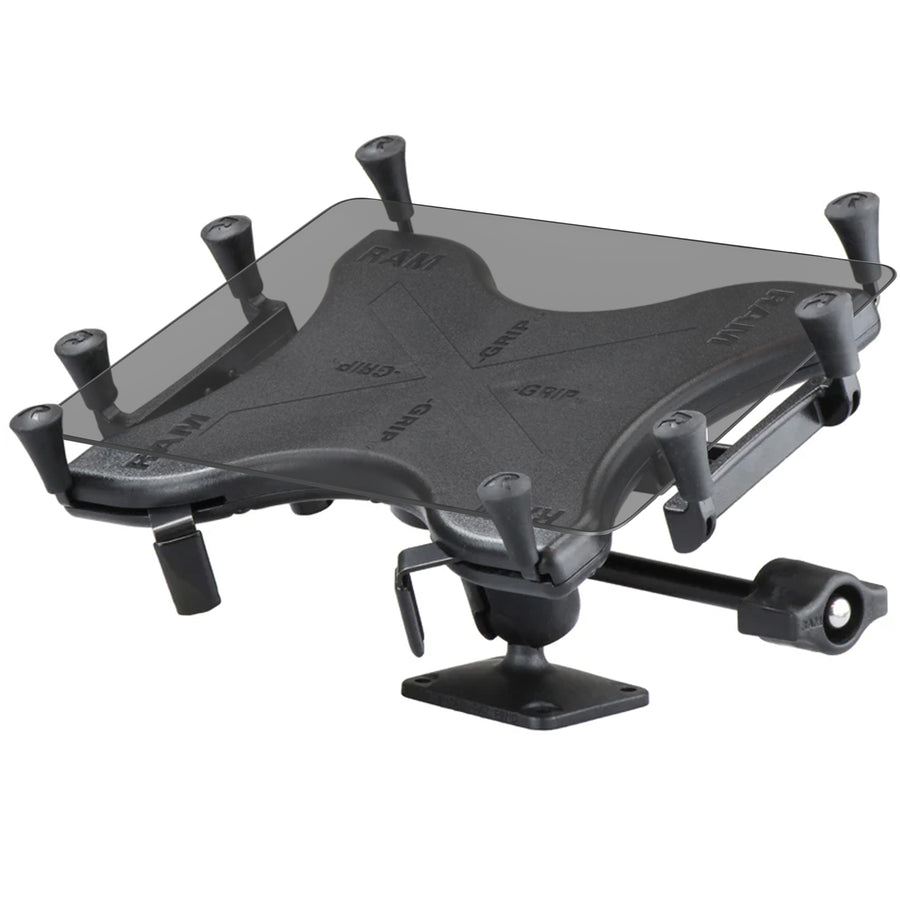

The RAP-B-104-UN9-ALA1-KRU consists of a 2" x 2.5" rectangle base, short length double socket arm, extended retention knob and universal X-Grip® clamping cradle for 9"-11" tablets. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 9"-11" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
hardware included:
Assembly Hardware
holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
packaging type:
Poly Bag
Weight:
1.42 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
Will this holder not work if the additional side supports do not fit my tablet?
In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
This part says it has a maxium height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height that is listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets
