Patented & Pats. Pend.

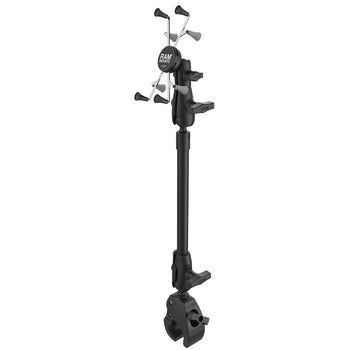

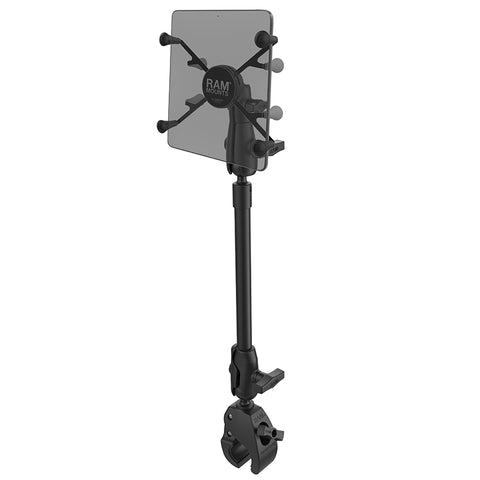

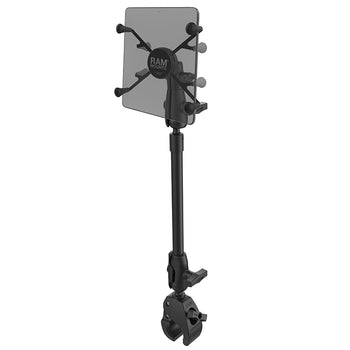

RAM® X-Grip® with RAM® Tough-Claw 9" Pipe Mount for 7"-8" Tablets
Part#: RAP-401-9-BC-UN8U
UPC: 793442010439
$241.99

Overview

This bedside mounting kit for 7”-8” tablets includes the large RAM® Tough-Claw clamping base, 9” extension pole, swiveling double socket arm, and the RAM® X-Grip® universal tablet holder. The RAM® Tough-Claw attaches with the twist of a knob to bedside rails and bars that range from 1” to 2.25” in outer diameter. Both a 9” long extension pole and swiveling double socket arm can be easily adjusted to keep the RAM® X-Grip® universal tablet holder in an ideal viewing and operating position. When not in use, the tablet holder and extension pole can simply be rotated away from the bed.

Features

  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets and includes optional device safety tether

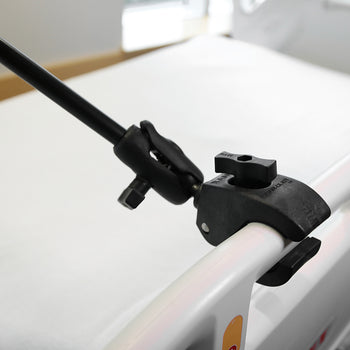

  • Large version of the RAM® Tough-Claw base is designed to bedside rails and bars ranging from 1" to 2.2" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Swiveling double socket arm and extension pole allows for ideal tablet placement
  • Backed by a lifetime warranty

hardware included:

(1) Optional Tether
(1) Glue Tube For Rubber Caps

product dimensions:

Overall Height: 25.625"

holder dimensions:

Width Range: 2.5" - 5.75"
Depth Range: .875" max

clamp range:

1" - 2.2" diameter

ball size:

Bottom of Arm: C Size (1.5")
Top of Arm: B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

2.71 lb

Print

Instructions

Questions & Answers

Have a Question?

Ask a Question
  • I noticed my tablet can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?

    That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
