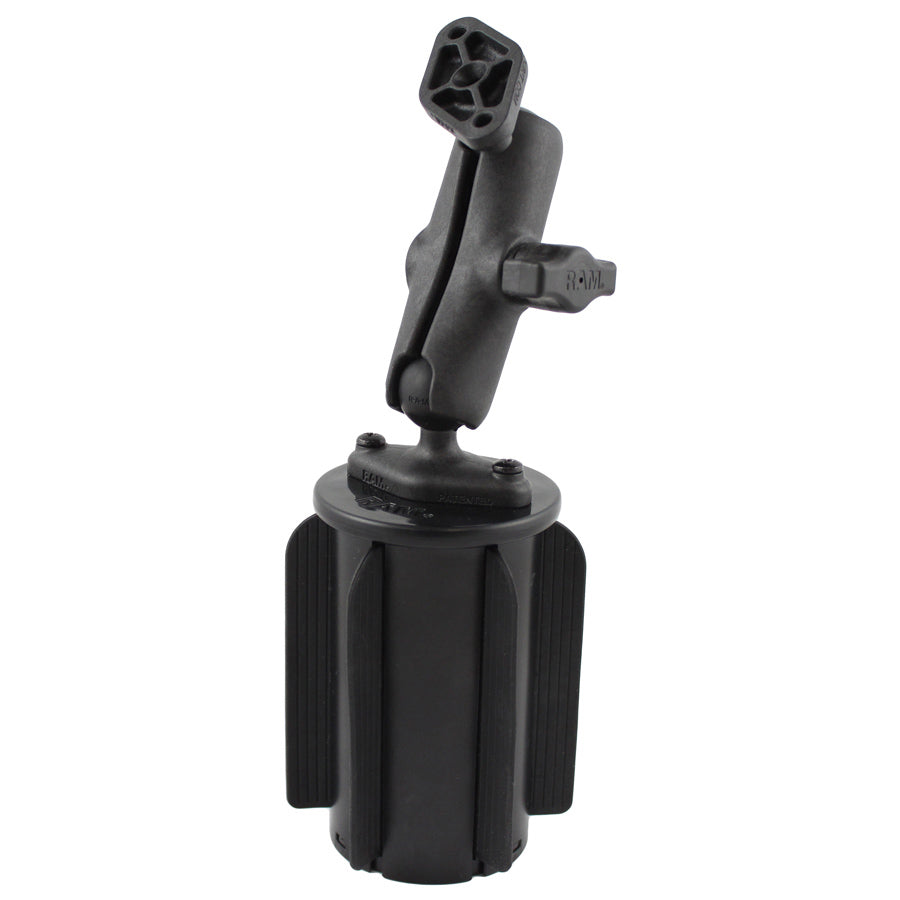

RAM-A-CAN™ II Universal Cup Holder Base with Assembled Double Ball Mount
Part #: RAP-299-3-B-102AU UPC: 793442944727 Patented

Product Information
Overview	The RAP-299-3-B-102AU is a pre-assembled cup holder mounting system that consists of a double socket arm, two diamond bases and RAM-A-CAN™ II cup holder base. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The RAM-A-CAN™ II cup holder base serves as a mounting point for the diamond base.

Product Information

Overview

The RAP-299-3-B-102AU is a pre-assembled cup holder mounting system that consists of a double socket arm, two diamond bases and RAM-A-CAN™ II cup holder base. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The RAM-A-CAN™ II cup holder base serves as a mounting point for the diamond base.

Specifications
hardware included	Assembly Hardware
product dimensions	Overall Height: 9.75"
wedge dimensions	Fits cup holders between 2.57" - 3.5" inside diameter
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	1.53 lb

RAM-A-CAN™ II Universal Cup Holder Base with Assembled Double Ball Mount

Questions about our products? Email us for support.

Patented

RAM-A-CAN™ II Universal Cup Holder Base with Assembled Double Ball Mount

Part#: RAP-299-3-B-102AU

UPC: 793442944727

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 3.73"	Overall Length 5.69"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
