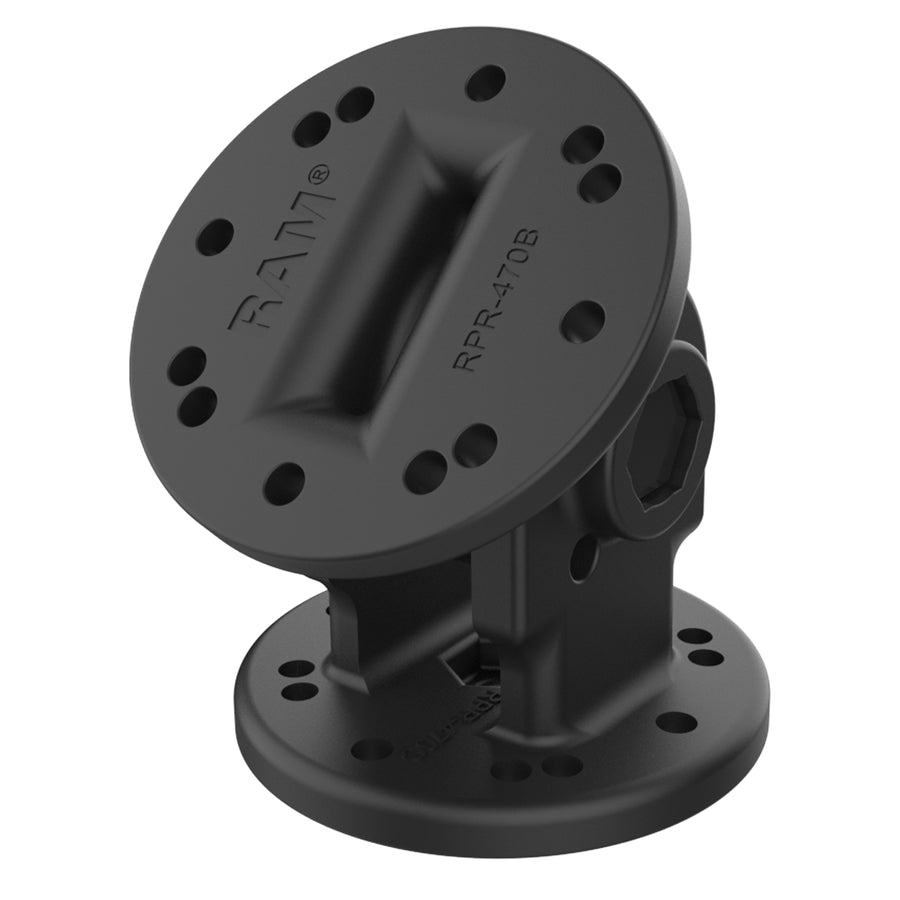

RAM® Single Pivot Mount

Part#: RAP-101-PV4-NKU
UPC: 793442025440
$22.49

Overview

The RAM® Single Pivot Mount (RAP-101-PV4-NKU) is a low-profile, drill-down mounting solution. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments.

Features

  • Low-profile, drill-down mounting solution for heavy-duty environments

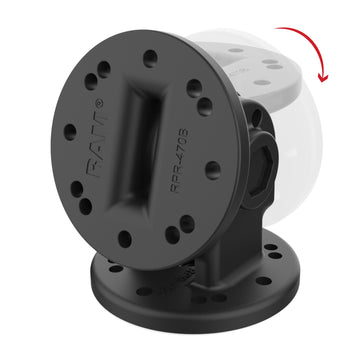

  • Single articulation joint pivots up to 180-degrees; barrel nut provide tamper resistance

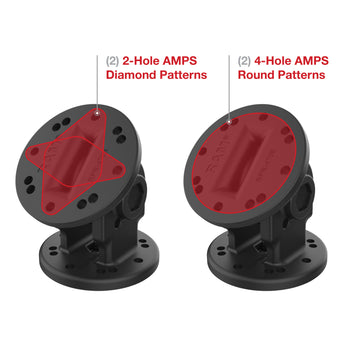

  • Each end features two 2-hole AMPS and two 4-hole AMPS patterns; secure your device to one end and the other to your preferred surface
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

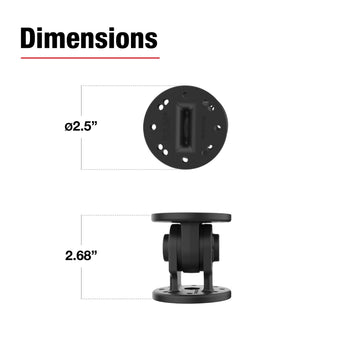

product dimensions:

Overall Height: 2.68"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"

plate size:

2.5" Diameter

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.27 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
