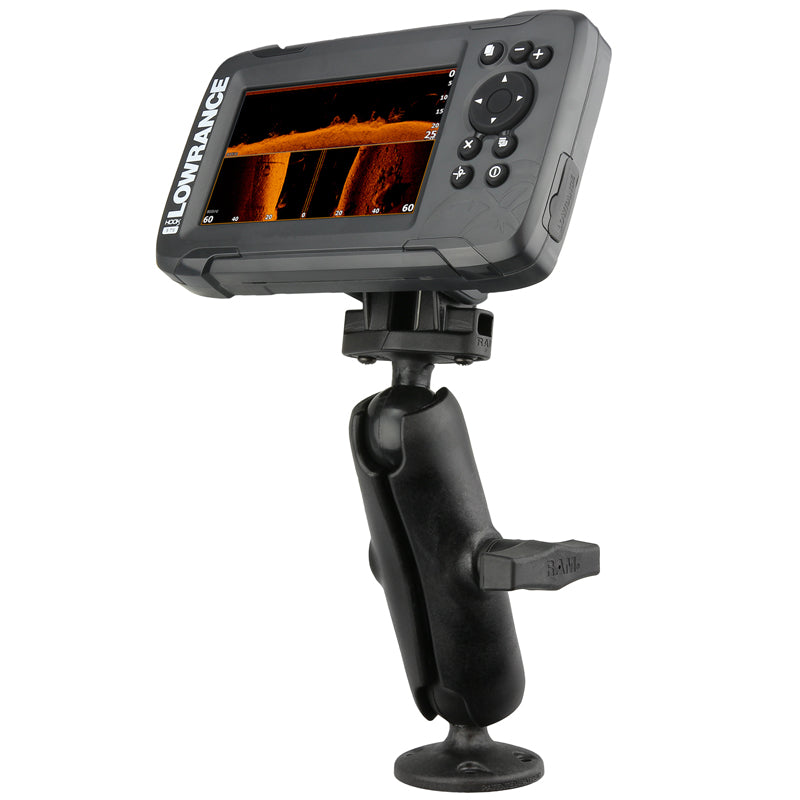

RAM^® Composite Mount for Lowrance Eagle 4 & 5, Hook² & Reveal - C Size
Part #: RAP-101-LO12 UPC: 793442956119 Patented

Product Information
Overview	Designed for heavy duty salt water use, this C size (1.5”) composite drill-down kit for the Lowrance Eagle 4 & 5 and Hook² allows users to swap out the factory mounting solution with a RAM^® Mounts solution. Simply attach the included adapter to the Lowrance Eagle 4 & 5 and Hook² and you're ready to connect the double socket arm and round base featuring the AMPS hole pattern. Made of high strength composite and powder coated marine grade aluminum, this kit is designed to keep your Hook² secure and stable in rugged environments on your boat, kayak or inflatable.

Product Information

Overview

Designed for heavy duty salt water use, this C size (1.5”) composite drill-down kit for the Lowrance Eagle 4 & 5 and Hook² allows users to swap out the factory mounting solution with a RAM^® Mounts solution. Simply attach the included adapter to the Lowrance Eagle 4 & 5 and Hook² and you're ready to connect the double socket arm and round base featuring the AMPS hole pattern. Made of high strength composite and powder coated marine grade aluminum, this kit is designed to keep your Hook² secure and stable in rugged environments on your boat, kayak or inflatable.

Specifications
hardware included	Assembly Hardware
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Retail Bag
Weight	1.17 lb

RAM<sup>®</sup> Composite Ball Mount for Lowrance Hook² & Reveal Series - C Size

Questions about our products? Email us for support.

Patented

RAM^® Composite Mount for Lowrance Eagle 4 & 5, Hook² & Reveal - C Size

Part#: RAP-101-LO12

UPC: 793442956119

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
