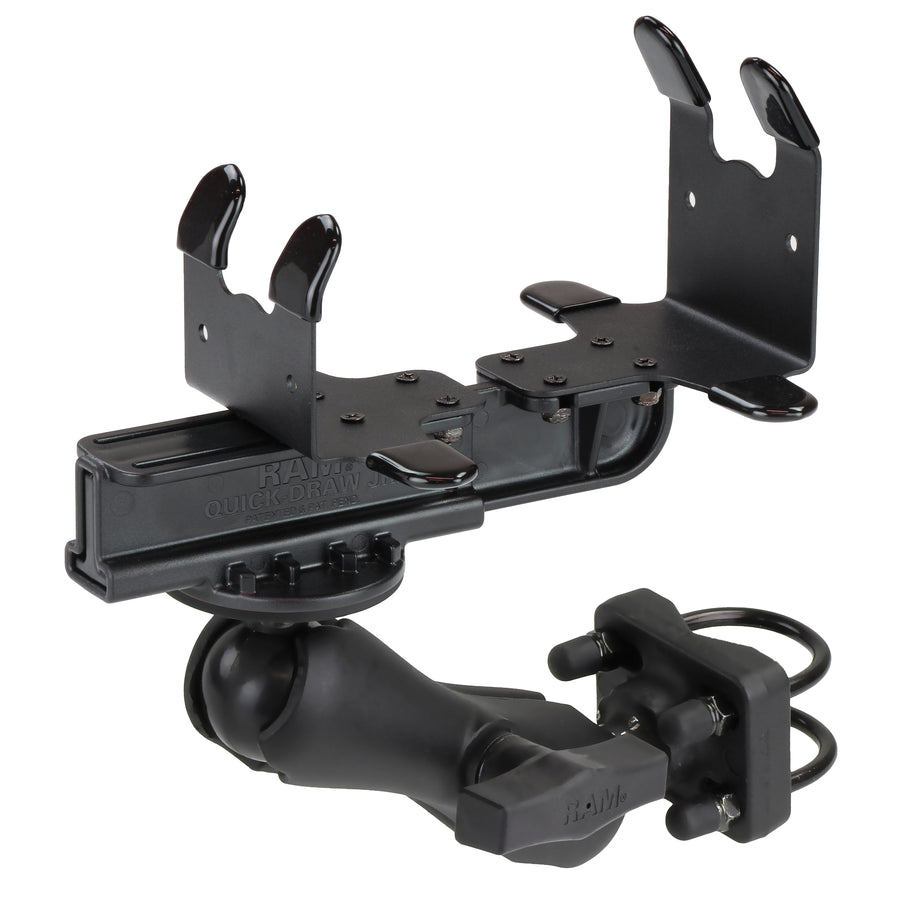

RAM® Vehicle Pole Mount for Mobile Printers with Rear Feed
Part #: RAM-VPR-107-1 UPC: 793442011306 Patented Features Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra, Intermec or Printronix printer (check compatibility section) Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAM-VPR-107-1 UPC: 793442011306 Patented

Features

Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra, Intermec or Printronix printer (check compatibility section)
Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter
Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Vehicle Pole Mount for Mobile Printers with Rear Feed

Product Information

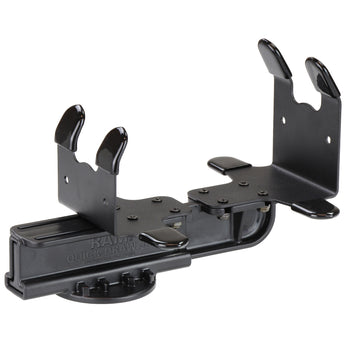

Overview	The RAM-VPR-107-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".

Product Information

Overview

The RAM-VPR-107-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".

Specifications
hardware included	Assembly Hardware (2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails (4) 1/4"-20 Nylock Nuts (4) Rubber Caps
holder dimensions	Max Height: 2.5" (tall side) Max Height: 1.75" (short side) Width Range: 6.125" - 10"
clamp range	1.25" - 1.5" diameter
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.3 lb

Questions about our products? Email us for support.

Patented

RAM® Vehicle Pole Mount for Mobile Printers with Rear Feed

Part#: RAM-VPR-107-1

UPC: 793442011306

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$121.99

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra, Intermec or Printronix printer (check compatibility section)
Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter
Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

holder dimensions:

Max Height: 2.5" (tall side)
Max Height: 1.75" (short side)
Width Range: 6.125" - 10"

clamp range:

1.25" - 1.5" diameter

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Powder coated steel
Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

2.3 lb
