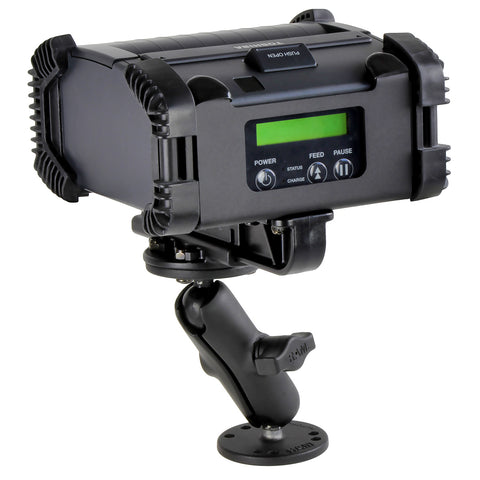

RAM® Drill-Down Mount with Printer Cradle for Toshiba EP4 - Short
Part #: RAM-VPR-105T-B-1 UPC: 793442934896 Patented

Product Information

Overview

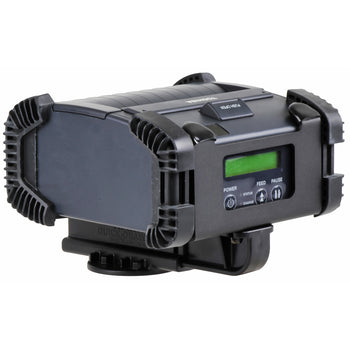

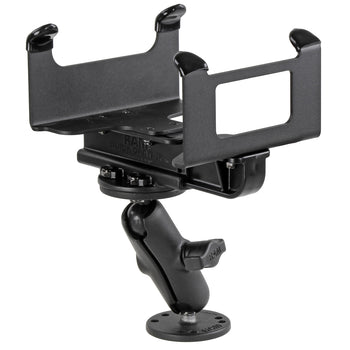

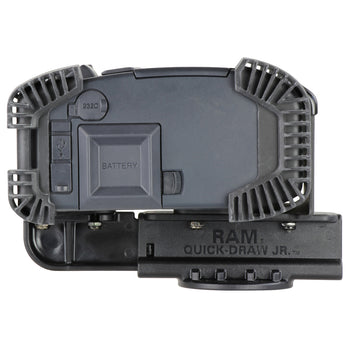

The RAM-VPR-105T-B-1 consists of (2 qty) 2.5" dia. round bases (AMPs hole pattern), STANDARD length double socket arm, dual steel brackets and stainless steel hardware, connected to a high strength composite spring loaded spine. The spring loaded mechanism allows for quick engagement and release of the Toshiba EP4 printer. This is a form-fitted cradle where the side brackets exposes access to all buttons, display screen and paper roll on the printer. The bottom of the spring loaded spine contains the universal AMPs hole pattern that will attachment to all RAM mounts that contain the same hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	Assembly Hardware
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.86 lb

RAM® Drill-Down Mount with Printer Cradle for Toshiba EP4 - Short

Patented

RAM® Drill-Down Mount with Printer Cradle for Toshiba EP4 - Short

Name: RAM® Drill-Down Mount with Printer Cradle for Toshiba EP4 - Short
Brand: RAM Mounts
SKU: RAM-VPR-105T-B-1
Price: 313.49 USD
Availability: InStock

Part#: RAM-VPR-105T-B-1

UPC: 793442934896

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
