RAM^® Quick-Draw^™ Jr. with Double U-Bolt Base for Small Printers
Part #: RAM-VPR-104-1 UPC: 793442925863 Patented

Product Information

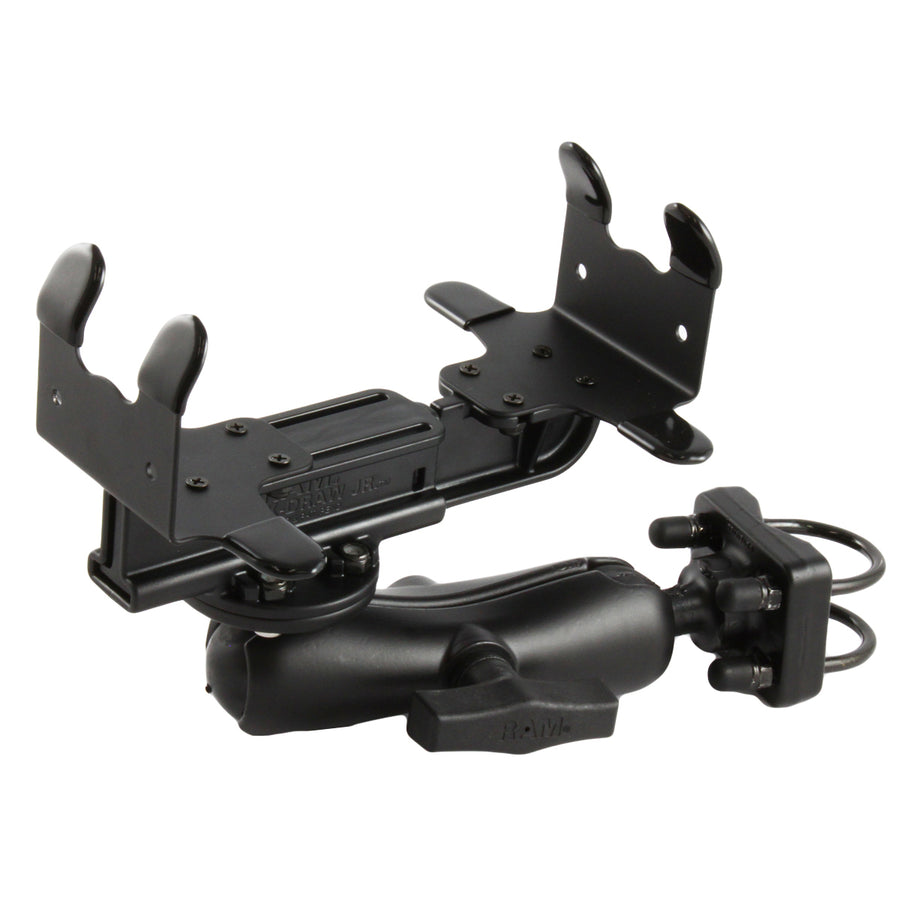

Overview	The RAM-VPR-104-1 consists of a double-u-bolt base, double socket arm and RAM^® Quick Draw^™ Jr. printer holder. The RAM Quick Draw^™ Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer.

Specifications
hardware included	Assembly Hardware (2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails (4) 1/4"-20 Nylock Nuts (4) Rubber Caps
holder dimensions	Max Height: 1.75" Width Range: 5.625" - 9.5"
clamp range	1.25" - 1.5" diameter
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.44 lb

RAM<sup>®</sup> Quick-Draw<sup>™</sup> Jr. with Double U-Bolt Base for Small Printers

Questions about our products? Email us for support.

Patented

RAM^® Quick-Draw^™ Jr. with Double U-Bolt Base for Small Printers

Part#: RAM-VPR-104-1

UPC: 793442925863

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$119.99
