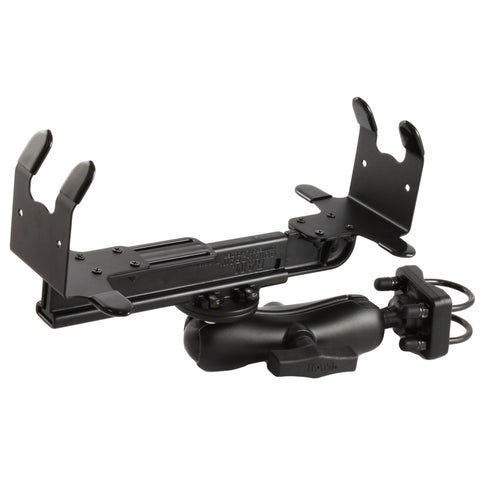

RAM® Quick-Draw™ Double U-Bolt Mount for HP OfficeJet 250 + More
$123.49
C Size 1.5" Ball, Double U-Bolt Base
Features
- Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your HP DeskJet or OfficeJet printer (check compatibility section)
- Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.88" in diameter
- Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The RAM-VPR-103-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".
RAM® Quick-Draw™ Double U-Bolt Mount for HP OfficeJet 250 + More
Overview
The RAM-VPR-103-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".
hardware included
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
holder dimensions
Max Height: 2.5"
Width Range: 9" - 15.5"
clamp range
1.25" - 1.5" diameter
socket to socket length
4.66"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Powder coated steel
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
2.44 lb
