RAM® No-Drill™ Laptop Mount for '20-25 Ford Police Interceptor Utility

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® No-Drill^™ Laptop Mount for '20-25 Ford Police Interceptor Utility
Part #: RAM-VB-206-SW1 UPC: 793442810398 Patented Features RAM^® No-Drill^™ base offers low-profile mounting; designed specifically for the 2020-2025 Ford Police Interceptor Utility Dual articulating swing arm allows for ideal laptop placement; patented ball and socket mounting system offers shock and vibration damping Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

RAM^® No-Drill^™ Laptop Mount for '20-25 Ford Police Interceptor Utility

Part #: RAM-VB-206-SW1 UPC: 793442810398 Patented

Features

RAM^® No-Drill^™ base offers low-profile mounting; designed specifically for the 2020-2025 Ford Police Interceptor Utility
Dual articulating swing arm allows for ideal laptop placement; patented ball and socket mounting system offers shock and vibration damping
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for '20-25 Ford Police Interceptor Utility

Product Information

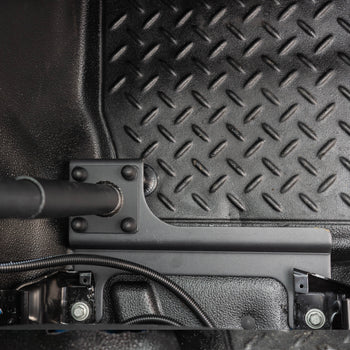

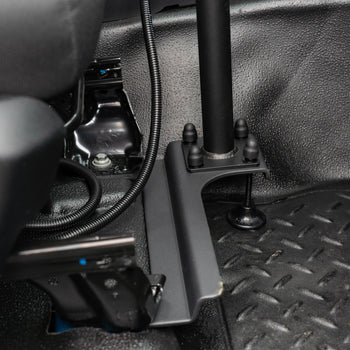

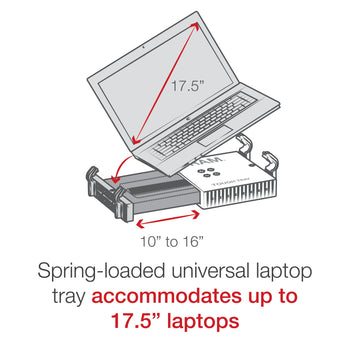

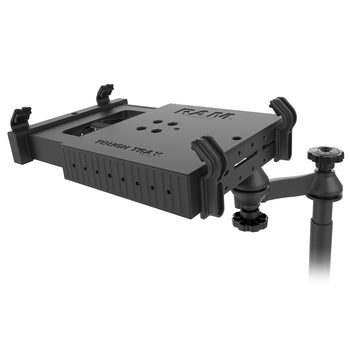

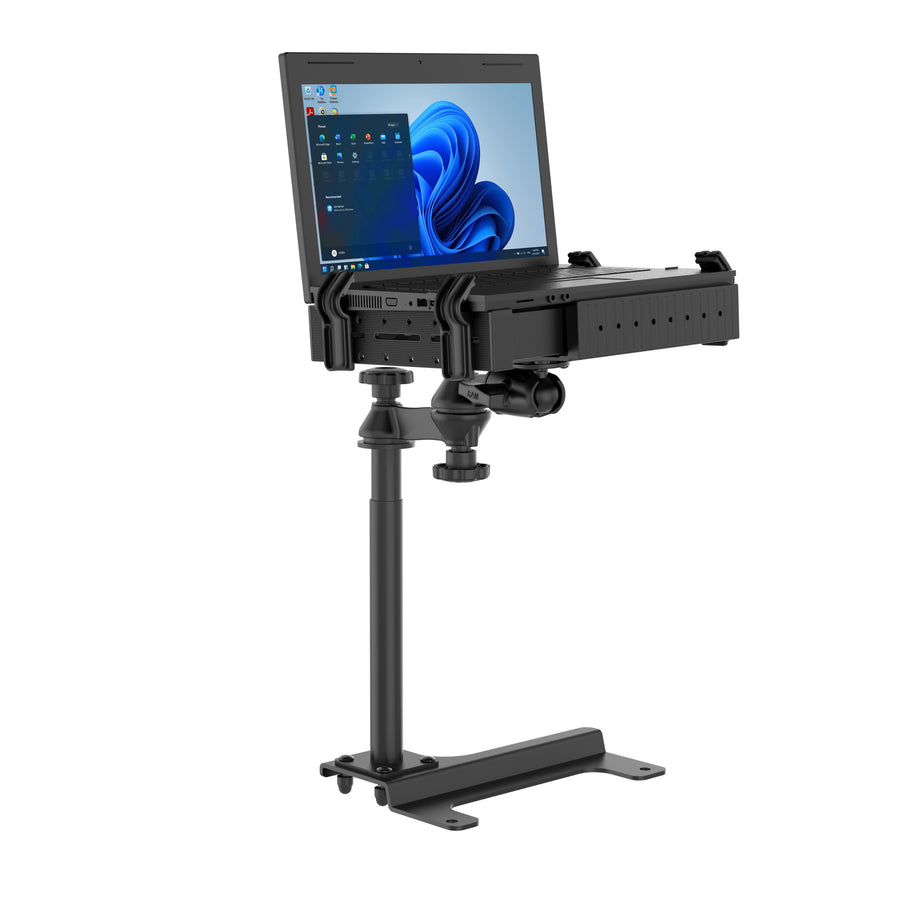

Overview	The RAM^® Universal No-Drill^™ Laptop features a heavy-duty steel mounting base designed to fit the 2020-2025 Ford Police Interceptor Utility. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM^® Tough-Tray^™ is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM^® systems to support phones or other electronics.

Product Information

Overview

The RAM^® Universal No-Drill^™ Laptop features a heavy-duty steel mounting base designed to fit the 2020-2025 Ford Police Interceptor Utility. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM^® Tough-Tray^™ is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM^® systems to support phones or other electronics.

Specifications
hardware included	Assembly Hardware Foot Stabilizer
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
hole pattern	Seat Bolt Distance: 12" center to center
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	14.95 lb

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for '20-25 Ford Police Interceptor Utility

Part#: RAM-VB-206-SW1

UPC: 793442810398

C Size

Size Guide

Ball Size
Arm Sizes

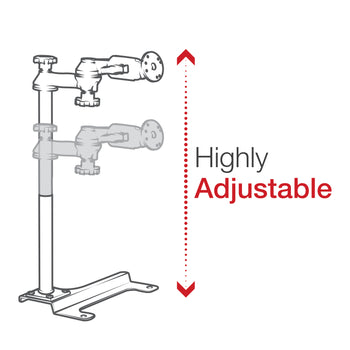

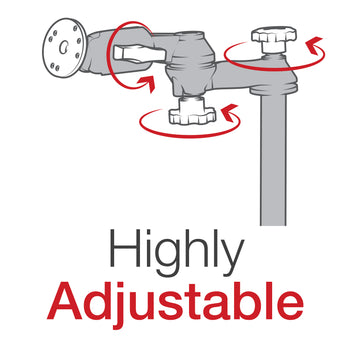

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$323.99

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

RAM^® No-Drill^™ base offers low-profile mounting; designed specifically for the 2020-2025 Ford Police Interceptor Utility
Dual articulating swing arm allows for ideal laptop placement; patented ball and socket mounting system offers shock and vibration damping
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

hardware included:

Assembly Hardware
Foot Stabilizer

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 12" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

14.95 lb

Print

Instructions

Tough-Tray Assembly Guide

RAM^® No-Drill^™ Vehicle Base Instructions

Upper Tele-Pole Assembly Guide

Questions & Answers

Have a Question?

Ask a Question

Is this compatible with a 2020 Ford Explorer ST?

This mount is compatible with the 2020 Ford Explorer. You would want to check the seat bolt distance (under OVERVIEW) to see if there is a difference in the Explorer and the Explorer ST under the passenger seat.
