$135.99

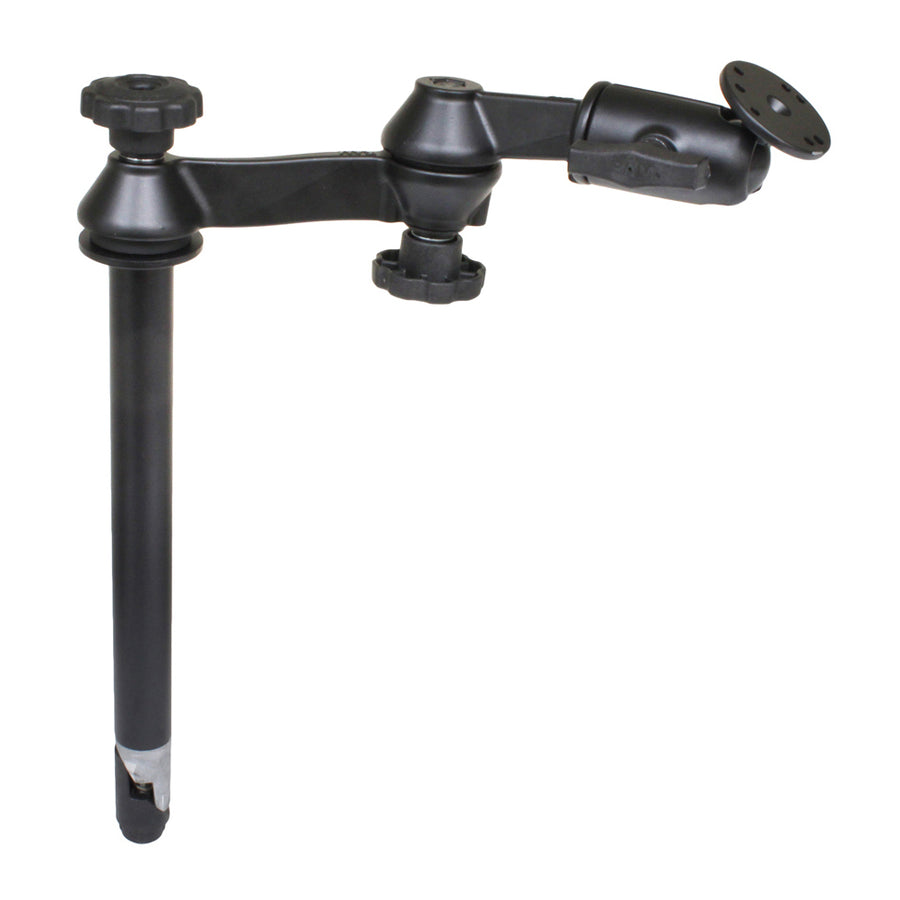

RAM® 12" Upper Pole with Double Swing Arms & Round Plate
Part#:RAM-VP-SW1-12 UPC:793442935305 Patented
The RAM-VP-SW1-12 consists of a 12" upper male Tele-Pole™, double swing arm and 2.5" round base that contains the universal AMPs hole pattern. The Tele-Pole™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The Tele-Pole™ will connect to any RAM vehicle base with a welded female Tele-Pole™. The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".

hardware included

Assembly Hardware

hole pattern

Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

C Size (1.5")

materials

Powder coated steel
Marine-grade aluminum

packaging type

Poly Bag

Weight

4.87 lb

Components

RAM® 12" Upper Pole RAM-VP-TTM12U $49.49
