Overview

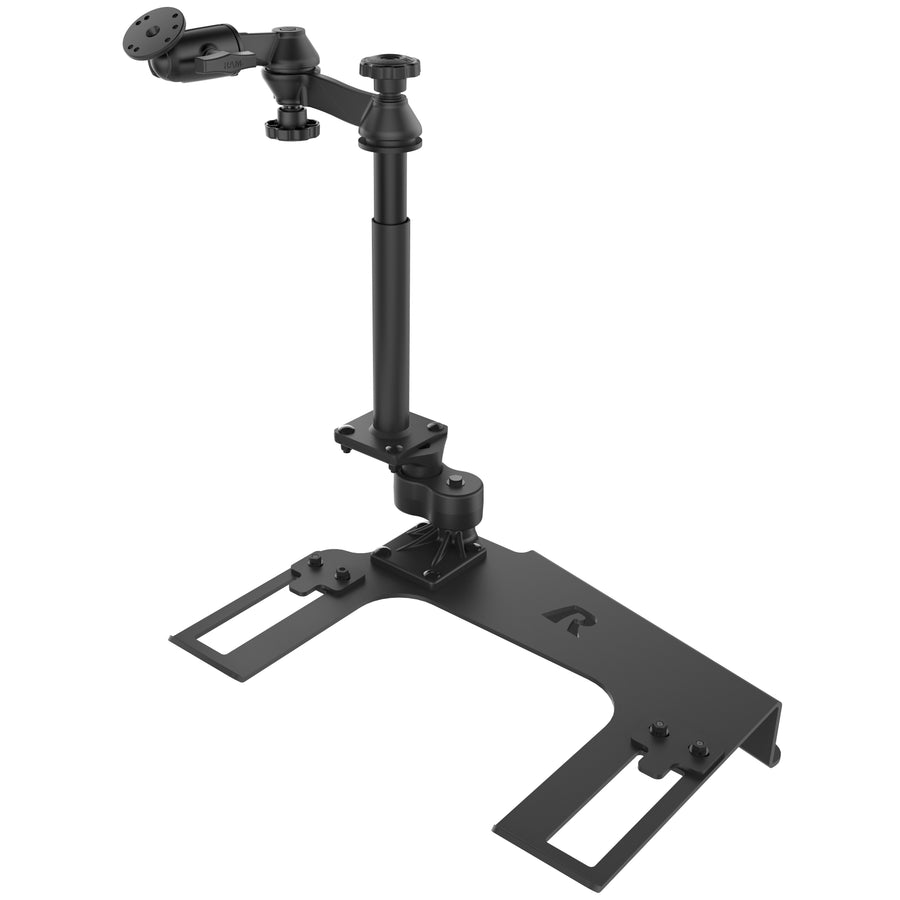

This RAM® No-Drill™ mounting system installs quickly and easily into a range of Chevrolet and GMC vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
Features
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

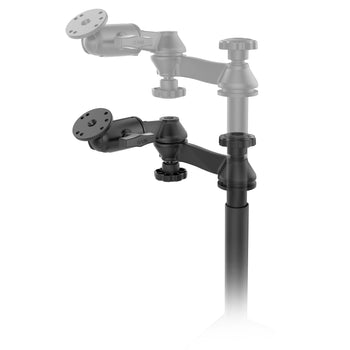

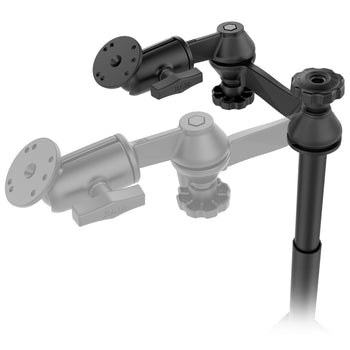

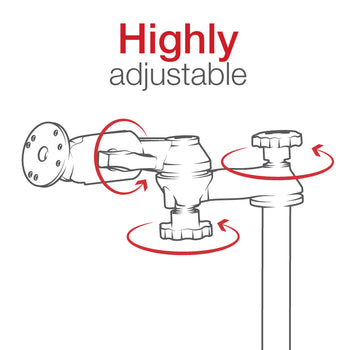

- Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
- Made of powder-coated steel and high-strength composite
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(2) Leg Clamps
(2) 1/4"-20 Hex Nuts
(2) 1/4" Flat Washers
(2) 1/4" Lock Washers
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Powder coated steel
Marine grade-aluminum
packaging type:
Box
Weight:
19.37 lb
Additional Information:
This base is best used in bucket seat vehicles with a full center console. For 2014 and 2015 trucks with a 40/20/40 bench seat, the RAM-VB-191 is also an option. To install this base, the plastic trim nearest to the passenger door may need to be cut or modified to accommodate the RAM® No-Drill™ base once installed. If this cannot be done in your vehicle, or you are not comfortable with this, you should not purchase this product. Note that the RAM-VB-191 will not work with the 4x4 lever on the center hump of the vehicle. The RAM-VB-191 is for 4x2 trucks only.
Questions & Answers
Have a Question?
-
Can someone sit in the passenger seat while this mount is installed?
Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable. If you want to be able to quickly remove the mount to make room for a passenger you could install our Remove-A-Pole base (RAM-VB-REM1).
-
Will this fit a 6500 Chevy Silverado
At this time we do not have a vehicle-specific No-Drill mount for your particular vehicle, but we do have a couple of universal options for you to consider. I have provided links to those options below.
The first one is the VB-196, which is our Universal No-Drill Kit. On this product page you will find a compatibility guide that will help you to determine whether it will work with your specific vehicle or not:
RAM-VB-196-SW1 - Universal No Drill
The other option is the VBD-122, which is our Universal Drill Down mount.
RAM-VBD-122-SW1 - Drill Down Mount
Please take a look and let me know if you have any other questions or require further assistance.
