RAM^® No-Drill^™ Laptop Mount for '19-25 Chevy Silverado, Tahoe & More
Part #: RAM-VB-203-SW1 UPC: 793442008863 Patented Features Custom laptop vehicle mount designed specifically for 2019-2025 Chevy Silverado 1500, 2020-2025 Chevy Silverado 2500 & 3500, 2021-2025 Chevy Tahoe, GMC Sierra 1500, 2020-2025 Sierra HD 2500 & Sierra HD 3500 Dual articulating swing arms allow for ideal placement; universal laptop tray accommodates most laptops Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

RAM^® No-Drill^™ Laptop Mount for '19-25 Chevy Silverado, Tahoe & More

Part #: RAM-VB-203-SW1 UPC: 793442008863 Patented

Features

Custom laptop vehicle mount designed specifically for 2019-2025 Chevy Silverado 1500, 2020-2025 Chevy Silverado 2500 & 3500, 2021-2025 Chevy Tahoe, GMC Sierra 1500, 2020-2025 Sierra HD 2500 & Sierra HD 3500
Dual articulating swing arms allow for ideal placement; universal laptop tray accommodates most laptops
Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for '19-25 Chevy Silverado, Tahoe & More

Product Information

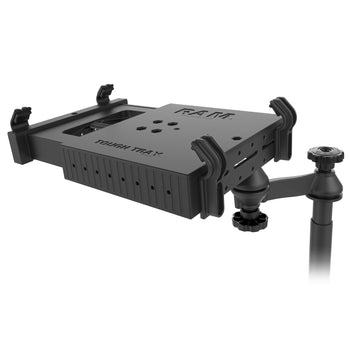

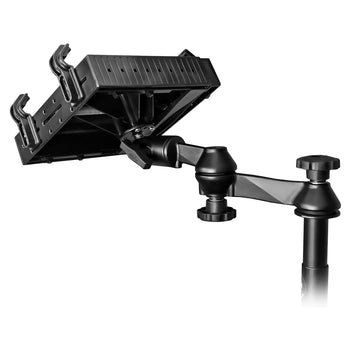

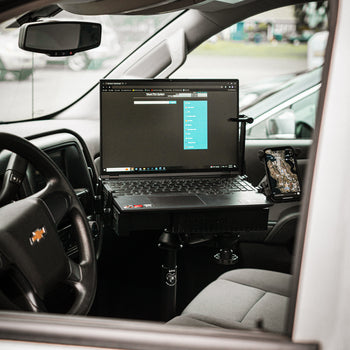

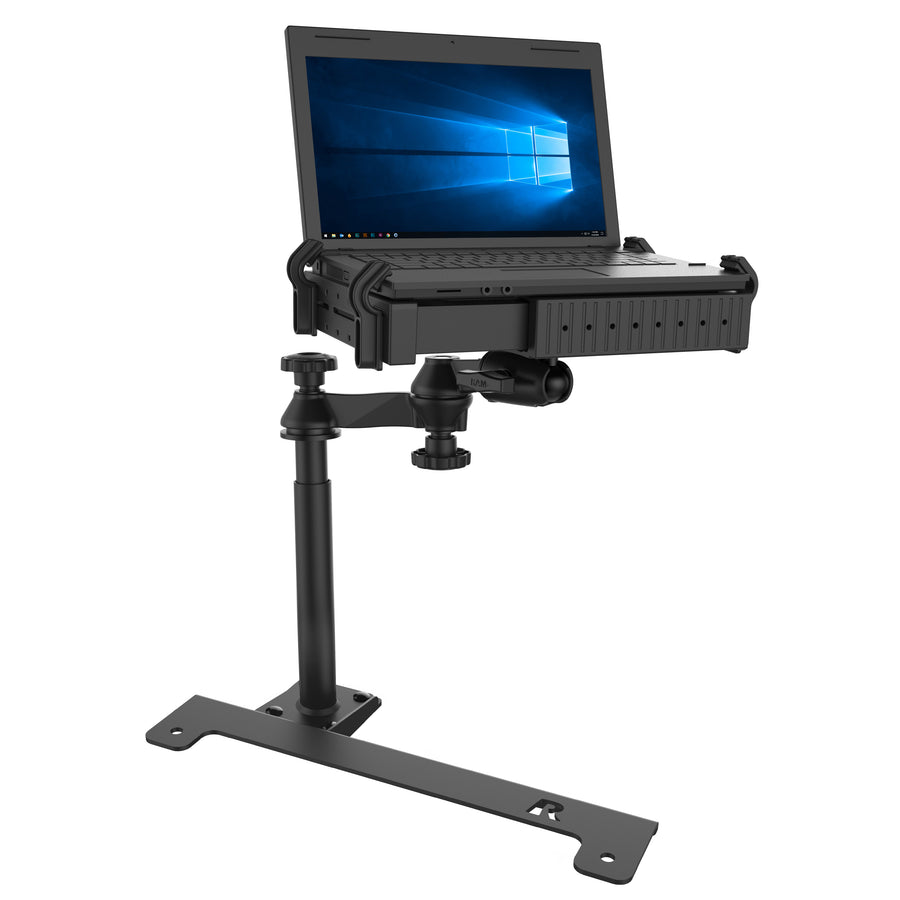

Overview	This RAM^® No-Drill^™ laptop stand system installs quickly and easily into the 2019-2025 Chevrolet Silverado and GMC Next Generation Sierra using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Product Information

Overview

This RAM^® No-Drill^™ laptop stand system installs quickly and easily into the 2019-2025 Chevrolet Silverado and GMC Next Generation Sierra using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Specifications
hardware included	Assembly Hardware Foot Stabilizer
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
hole pattern	Seat Bolt Distance: 17.5" center to center
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	17.0 lb
Additional Information	This mount is not compatible with the 2019 Silverado 1500 LD. For compatibility with this vehicle, see RAM-VB-193-SW1.

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for '19-24 Chevy Silverado + More

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for '19-25 Chevy Silverado, Tahoe & More

Part#: RAM-VB-203-SW1

UPC: 793442008863

$339.99

C Size

Size Guide

Ball Size
Arm Sizes

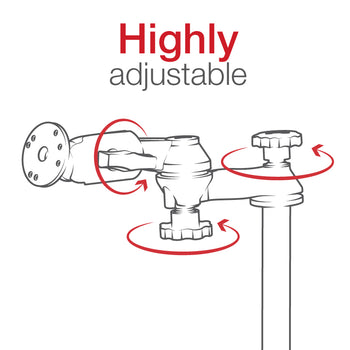

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Custom laptop vehicle mount designed specifically for 2019-2025 Chevy Silverado 1500, 2020-2025 Chevy Silverado 2500 & 3500, 2021-2025 Chevy Tahoe, GMC Sierra 1500, 2020-2025 Sierra HD 2500 & Sierra HD 3500
Dual articulating swing arms allow for ideal placement; universal laptop tray accommodates most laptops
Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

hardware included:

Assembly Hardware
Foot Stabilizer

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 17.5" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

17.0 lb

Additional Information:

This mount is not compatible with the 2019 Silverado 1500 LD. For compatibility with this vehicle, see RAM-VB-193-SW1.

Print

Instructions

Upper Tele-Pole Assembly Guide

RAM^® No-Drill^™ Vehicle Base Instructions

Tough-Tray Assembly Guide

Documents

Sell Sheet

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Can someone sit in the passenger seat while this mount is installed?

Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable. If you want to be able to quickly remove the mount to make room for a passenger you could install our Remove-A-Pole base (RAM-VB-REM1).
Is this compatible with the 2024 Chevy Silverado EV?

This is compatible with: Silverado 1500 (2019-2025)
Silverado 2500 (2020-2025)
Silverado 3500 (2020-2025)
You can also compare the seat bolt distance: Seat Bolt Distance: 17.5" center to center
RAM® No-Drill™ Laptop Mount for '19-25 Chevy Silverado, Tahoe & MorePart#: RAM-VB-203-SW1 UPC: 793442008863 PatentedIs this the complete kit as shown in the picture? floor mount for the seat, pole, swing arms & laptop Tray? Also I have a 2024 Chevy 3500HD, bucket seats, full console, will it work with my truck?

Yes, this is a complete kit with the base, the telepoles, the double swing arm and the tough tray. And yes, it will fit the 2024 Chevy 3500HD with bucket seats and full console. Thanks.
Does this work with bench and console pickups?

This is only for bucket seats with console.
Do you have a separate mount for tablets? Or same mount is used and can be tilted?

You can swap out the laptop tray included with the RAM-VB-203-SW1 with any of the RAM tablet holders that have a 4-hole AMPS pattern on the back. The round plate with ball at the end of the swing arm will allow a good range of articulation so you can have just the right viewing angle.
