RAM® No-Drill™ Laptop Mount for '14-26 Ford Transit Full Size Van
Part #: RAM-VB-194-SW3 UPC: 793442036613 Patented & Pats. Pend. Features Custom laptop vehicle mount installs using passenger seat bolts; no drilling required Dual articulating swing arm provides a high-level of adjustability Universal laptop tray accommodates most laptops Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

Product Information

Overview

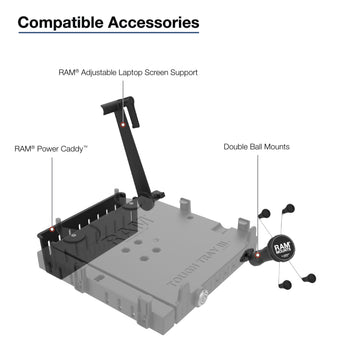

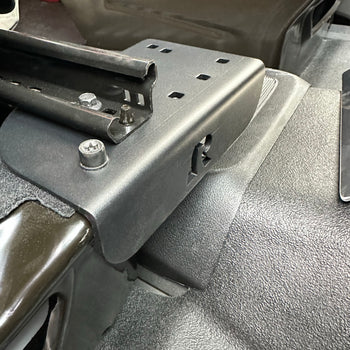

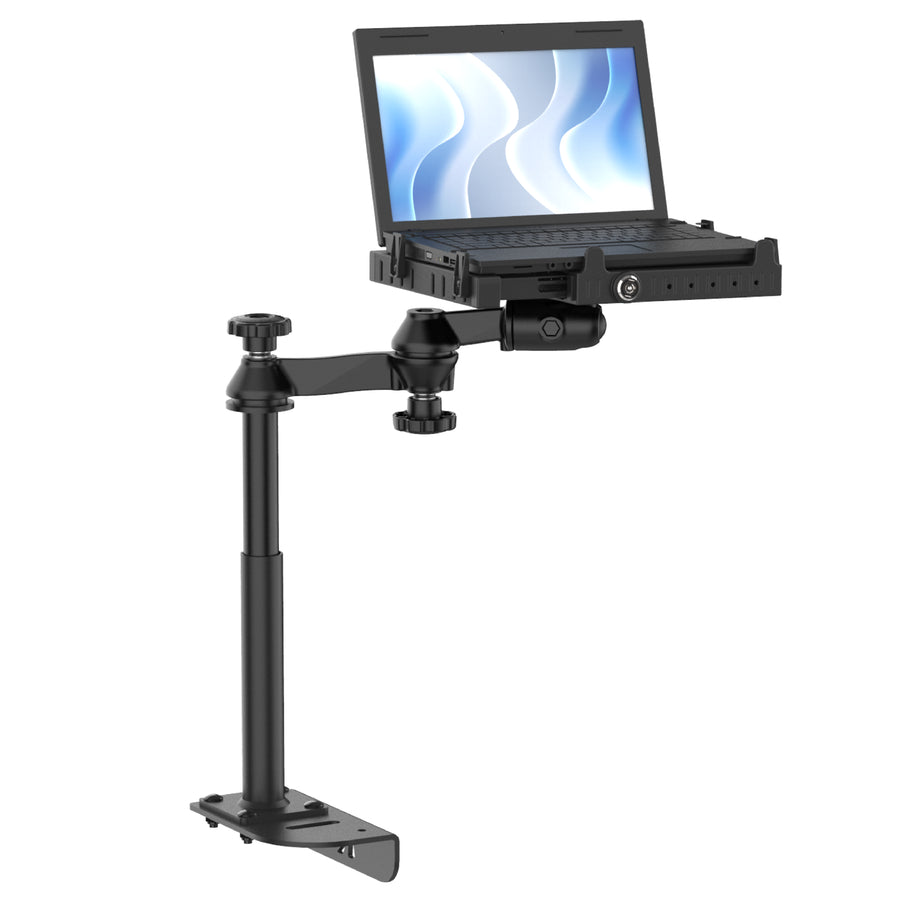

The RAM® No-Drill™ Laptop Mount for '14-26 Ford Transit Full Size Van (RAM-VB-194-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms with grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above.

Specifications
hardware included	Laptop Tray Hardware Tele-Pole™ Hardware (1) 1.75" Washer
tray dimensions	Width Range: 10" - 15.25" Side Arm Clamp Height: 0" - 1.875" Depth Range: 7.625" - 10.625" Tray Thickness: 1.26"
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Additional Information	Depending on the vehicle and install, this base may limit the overall adjustability of the passenger seat.

Patented & Pats. Pend.

RAM® No-Drill™ Laptop Mount for '14-26 Ford Transit Full Size Van

Name: RAM® No-Drill™ Laptop Mount for '14-26 Ford Transit Full Size Van
Brand: RAM Mounts
SKU: RAM-VB-194-SW3
Price: 347.99 USD
Availability: InStock

Part#: RAM-VB-194-SW3

UPC: 793442036613

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$347.99

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

RAM® Adjustable Laptop Screen Support Arm

$22.49

Overview

Features

Custom laptop vehicle mount installs using passenger seat bolts; no drilling required
Dual articulating swing arm provides a high-level of adjustability
Universal laptop tray accommodates most laptops
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty
