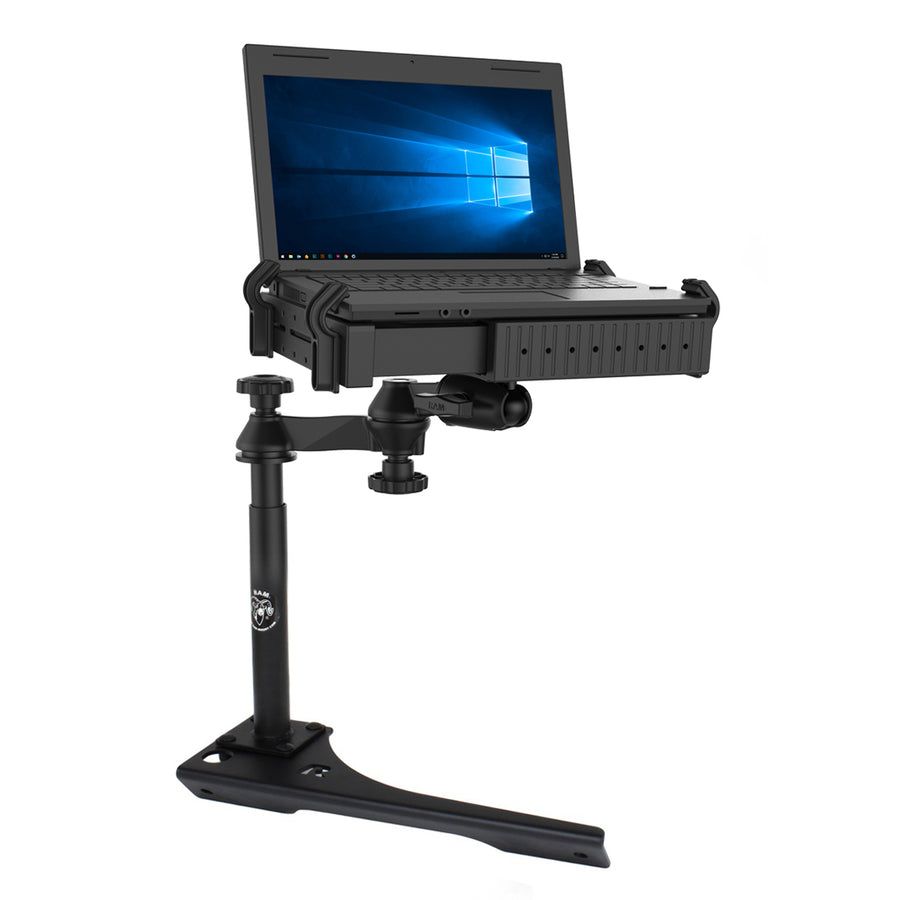

RAM^® No-Drill^™ Laptop Mount for '19-25 Ram 1500 Pickup Trucks (5th Gen)
Part #: RAM-VB-186ST1-SW1 UPC: 793442008269 Patented Features RAM^® No-Drill^™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops Made of powder-coated steel and high-strength composite Backed by a lifetime warranty

Product Information
Overview	This RAM^® No-Drill^™ laptop stand system installs quickly and easily into the 5th Gen Ram 1500 (2019 2023) using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Product Information

Overview

This RAM^® No-Drill^™ laptop stand system installs quickly and easily into the 5th Gen Ram 1500 (2019 2023) using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Specifications
hardware included	Assembly Hardware (2) M10-1.5 x 70mm Hex Bolts (2) 1.68" Stand-Offs (2) 3/8" Fender Washers
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
hole pattern	Seat Bolt Distance: 15.125" center to center
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	14.5 lb
Additional Information	This mount is not compatible with any RAM "Classic" trucks. For the Classic vehicles, please see RAM-VB-178A-SW1.

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for '19-23 Ram 1500 Pickup Trucks (5th Gen)

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for '19-25 Ram 1500 Pickup Trucks (5th Gen)

Part#: RAM-VB-186ST1-SW1

UPC: 793442008269

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$312.49

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

RAM^® No-Drill^™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments
Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
Made of powder-coated steel and high-strength composite
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) M10-1.5 x 70mm Hex Bolts
(2) 1.68" Stand-Offs
(2) 3/8" Fender Washers

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 15.125" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

14.5 lb

Additional Information:

This mount is not compatible with any RAM "Classic" trucks. For the Classic vehicles, please see RAM-VB-178A-SW1.

Print

Instructions

RAM No-Drill Seat Bases Instructions 186 Series

Tough-Tray Assembly Guide

Upper Tele-Pole Assembly Guide

Questions & Answers

Have a Question?

Ask a Question

Is this kit compatible with my 2018 Ram 1500?

No, this mount is only compatible with the redesigned Ram 1500, it is not compatible with the 1500 Classic or Ram 1500 models older than 2019.
Is it compatible with my 2024 Ram 1500 Classic quad cab?

This mount is not compatible with any RAM"Classic" trucks. For the Classic vehicles, please see RAM-VB-178A-SW1.
Are you able to stow the desk when not in use?

No, it's not stowable but you can use this remove-a-pole part to just take it out when not in use:

https://rammount.com/products/ram-vb-rem1
I have the new 2025 Ram rebel 1500. will this be compatible ?

We have not been able test this base on that year, make, and model. You can compare the Seat Bolt Distance to see if this will work for you.
What is the weight limit for this item? I am curious about mounting a computer monitor, but i am unsure due to possibly exceeding the weight limit.

The C size ball connections like the one for the RAM-VB-195-SW1 has a maximum recommended weight of 4lbs.
Will the laptop close when it's in the mount?

The side arms on the laptop tray that come with this kit do not allow you to close the laptop down all the way, however we have this accessory kit of alternate side arms that have flat angles that can be positioned flush against the bottom of the laptop, and these will let you close it down all the way: RAM-234K1-4U
