Patented
RAM® No-Drill™ Laptop Mount for '12-24 RAM 2500-5500 + More
Part#: RAM-VB-178A-SW1
UPC: 793442937255
Ball Icon C Size
$385.49

Overview

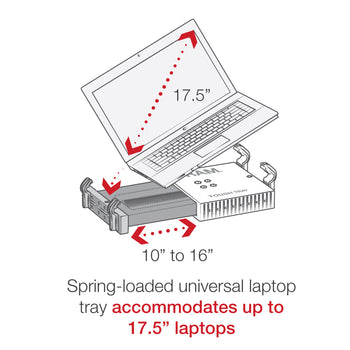

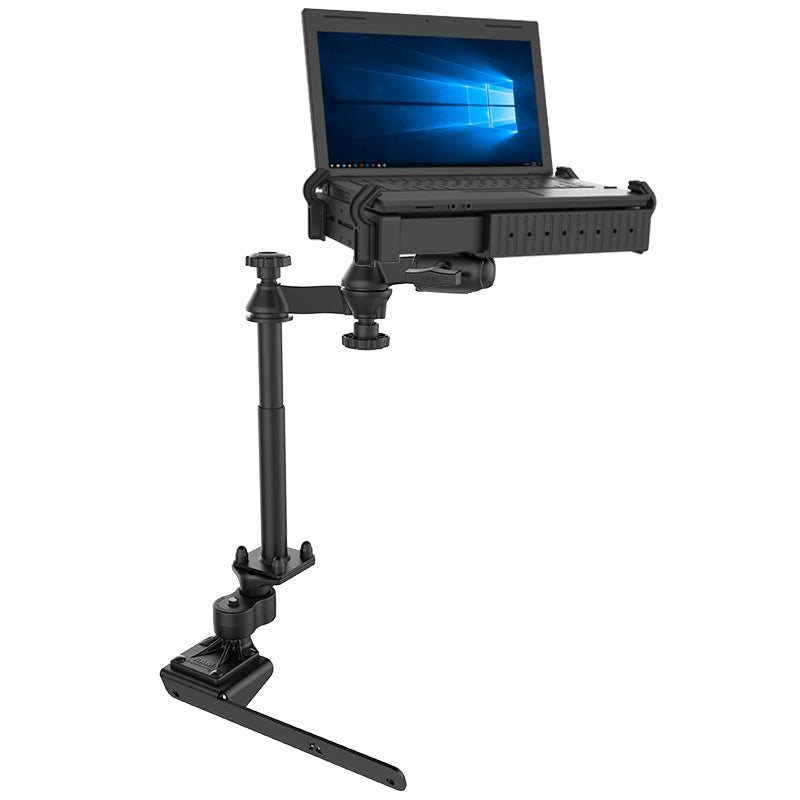

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Features

  • Custom laptop vehicle mount designed specifically for 2012-2024 Ram 2500-5500 trucks
  • Dual articulating swing arms allow for ideal placement; universal laptop tray accommodates most laptops

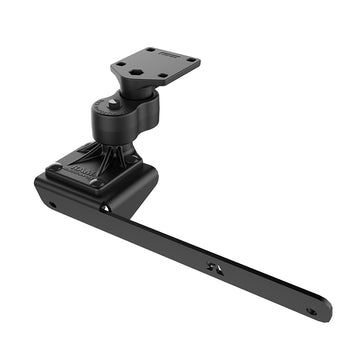

  • Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 13.25" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

16.0 lb

Additional Information:

Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)
