RAM® No-Drill™ Laptop Mount for '99-16 Ford F-250 - F750 + More

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® No-Drill^™ Laptop Mount for '99-16 Ford F-250 - F750 + More
Part #: RAM-VB-185-SW1 UPC: 793442909092 Patented Features RAM^® No-Drill^™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops Made of powder-coated steel and high-strength composite Backed by a lifetime warranty

Product Information

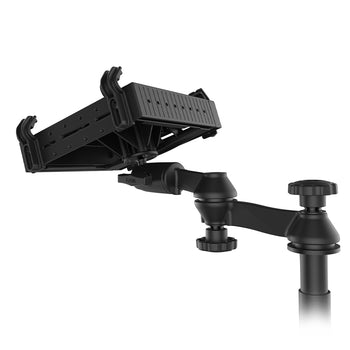

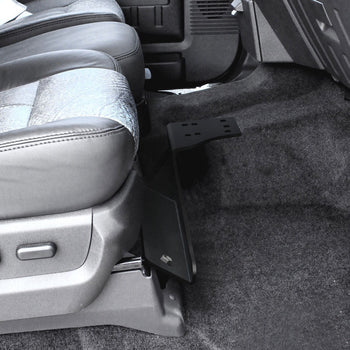

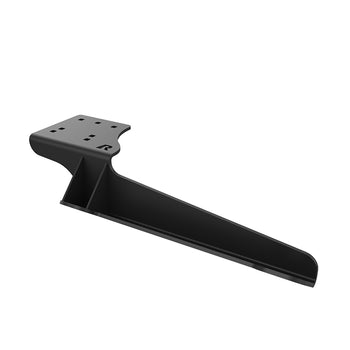

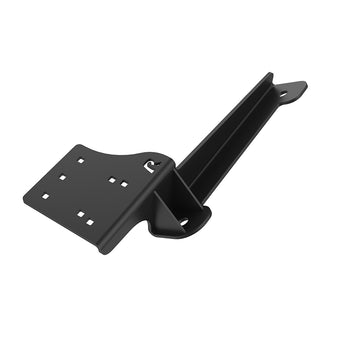

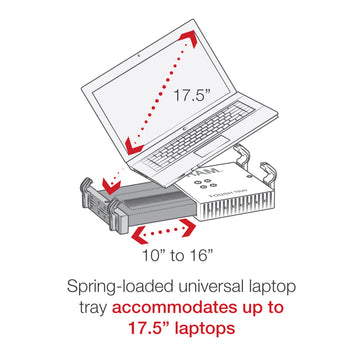

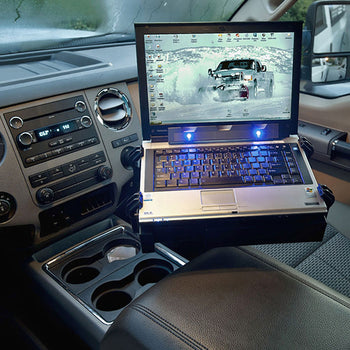

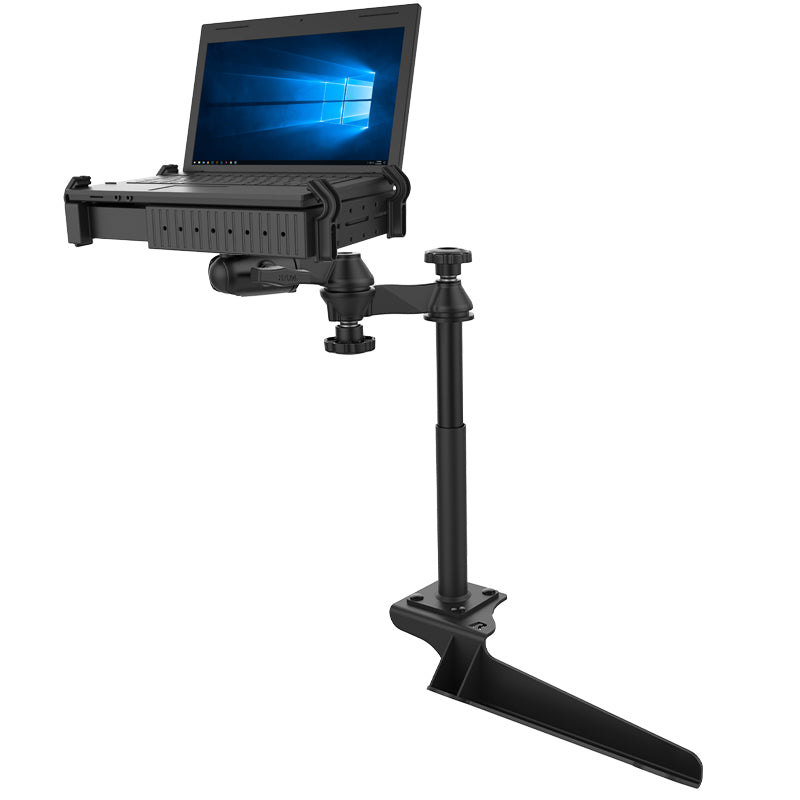

Overview	This RAM^® No-Drill^™ laptop stand system installs quickly and easily into a variety of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Product Information

Overview

This RAM^® No-Drill^™ laptop stand system installs quickly and easily into a variety of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Specifications
hardware included	Assembly Hardware (2) M12-1.75 x 100mm Hex Bolts (2) M12-1.75 x 60mm Hex Bolts (2) M12 Lock Washers (2) 3/8" Stand-Offs (2) 1" Stand-Offs
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
hole pattern	Seat Bolt Distance: 11.5" center to center
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	17.0 lb

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for '99-16 Ford F-250 - F750 + More

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for '99-16 Ford F-250 - F750 + More

Part#: RAM-VB-185-SW1

UPC: 793442909092

C Size

Size Guide

Ball Size
Arm Sizes

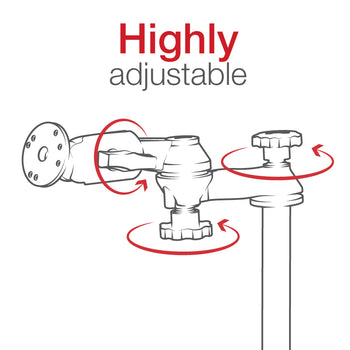

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$366.99

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

RAM^® No-Drill^™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments
Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
Made of powder-coated steel and high-strength composite
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) M12-1.75 x 100mm Hex Bolts
(2) M12-1.75 x 60mm Hex Bolts
(2) M12 Lock Washers
(2) 3/8" Stand-Offs
(2) 1" Stand-Offs

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 11.5" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

17.0 lb

Print

Instructions

Tough-Tray Assembly Guide

RAM No-Drill Seat Bases Instructions 185 Series

Upper Tele-Pole Assembly Guide

Documents

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Can someone sit in the passenger seat while this mount is installed?

Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable. If you want to be able to quickly remove the mount to make room for a passenger you could install our Remove-A-Pole base (RAM-VB-REM1).
Will this mount work in a 2003 F250 single cab with a bench seat? If not, is there a no-drill solution that fits this vehicle? Or could you steer me in the right direction for a proper mounting solution for this truck?

Please refer to the Instructions for the RAM-VB-185to ensure a good fit. Another option to check out is our RAM^® No-Drill^™ Universal Vehicle Base.
Will this mount RAM-VB-185-SW1 work on a 2021 Ford F-750?

Yes, the RAM-VB-185-SW1 is compatible with a 2021 Ford F-750. You can find installation instructions here that will give you an idea as to how that base is installed.
