Patented

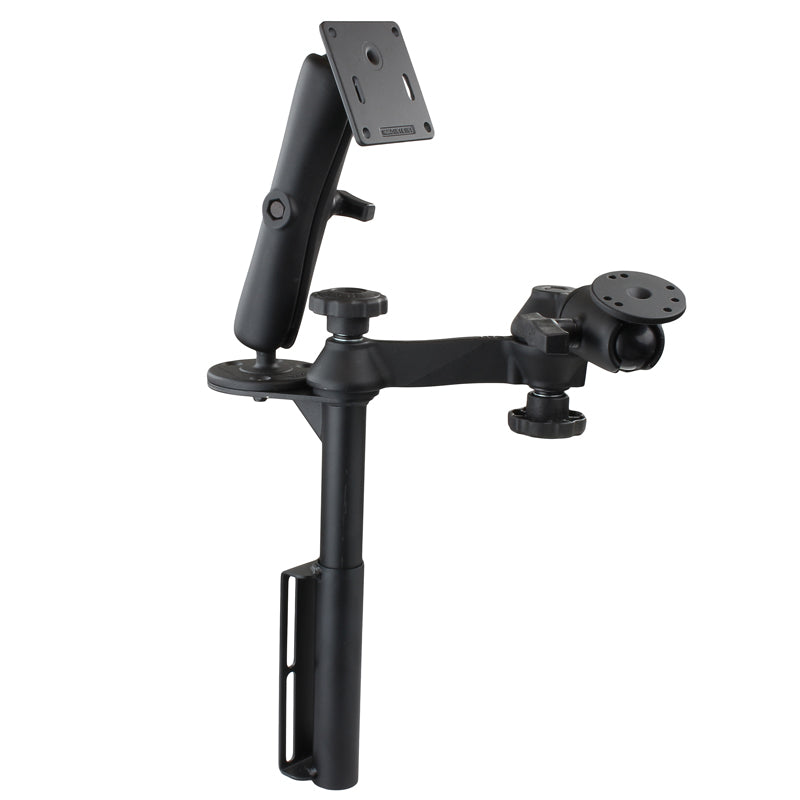

RAM® Vertical Drill-Down Mount with Swing Arms and Double Ball Mount
Part#: RAM-VB-181-WEST1
UPC: 793442949272
$281.49

hardware included:

Assembly Hardware
(2) Backing Plates
(4) 1/4"-20 x 1" Hex Bolts
(4) 1/4"-20 Hex Nuts
(8) 1/4" Flat Washers
(4) 1/4" Lock Washers
(2) #10-24 x 3/4" Machine Screws
(2) #10 Fender Washers
(1) 1/4"20 x 3/4" Machine Screw

hole pattern:

4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
See Drawing

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum

packaging type:

Box

Weight:

12.66 lb

Print

Instructions

Upper Tele-Pole and Flange Assembly Guide
RAM No-Drill Seat Bases Instructions 181 Series

Documents

Drawing File - 75 x 75mm VESA Plate
Drawing File - Vertical Drill-Down Vehicle Base
