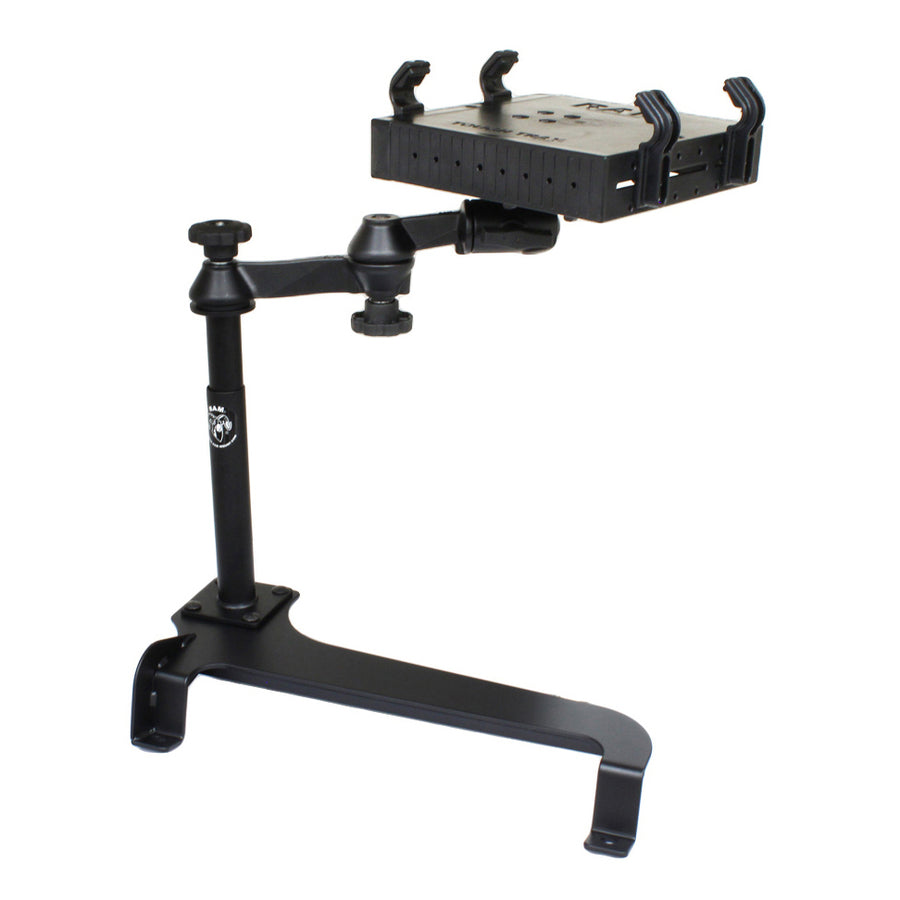

RAM® No-Drill™ Laptop Mount for '06-13 Honda Ridgeline | |
---|---|
Part #:
RAM-VB-132-SW1
UPC:
793442904851
Patented
|
![]() |
Product Information | |
---|---|

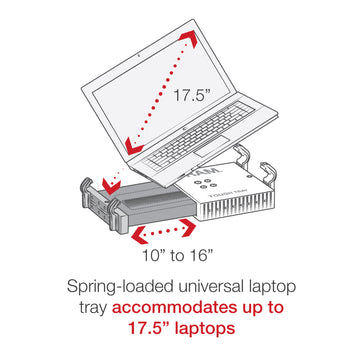

Overview | This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics. |
Specifications | |
---|---|
hardware included | Assembly Hardware |
tray dimensions | Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125" |
hole pattern | Seat Bolt Distance: 16.875" center to center |
ball size | C Size (1.5") |
materials | Powder coated steel Marine grade-aluminum High strength composite |
packaging type | Box |
Weight | 15.0 lb |

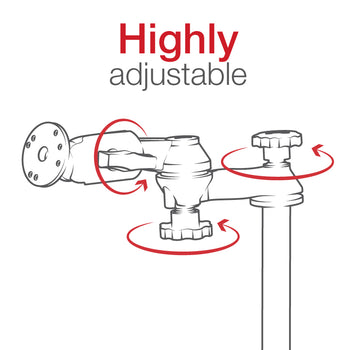

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Vehicles
Honda
Ridgelilne (2006-2013)
Ridgelilne RT (2013)
Ridgelilne RTL (2013)
Ridgelilne RTS (2013)
Ridgelilne Sport (2013)
Kit Components

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Vehicles
Honda
Ridgelilne (2006-2013)
Ridgelilne RT (2013)
Ridgelilne RTL (2013)
Ridgelilne RTS (2013)
Ridgelilne Sport (2013)
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-VB-132-SW1!
We'll email you once the item is available.
Overview
This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
hardware included:
Assembly Hardware
tray dimensions:
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"
hole pattern:
Seat Bolt Distance: 16.875" center to center
ball size:
C Size (1.5")
materials:
Powder coated steel
Marine grade-aluminum
High strength composite
packaging type:
Box
Weight:
15.0 lb
