RAM® No-Drill™ Laptop Mount for Sprinter Van + More

rammount.com
1-800-497-7479
sales@rammount.com

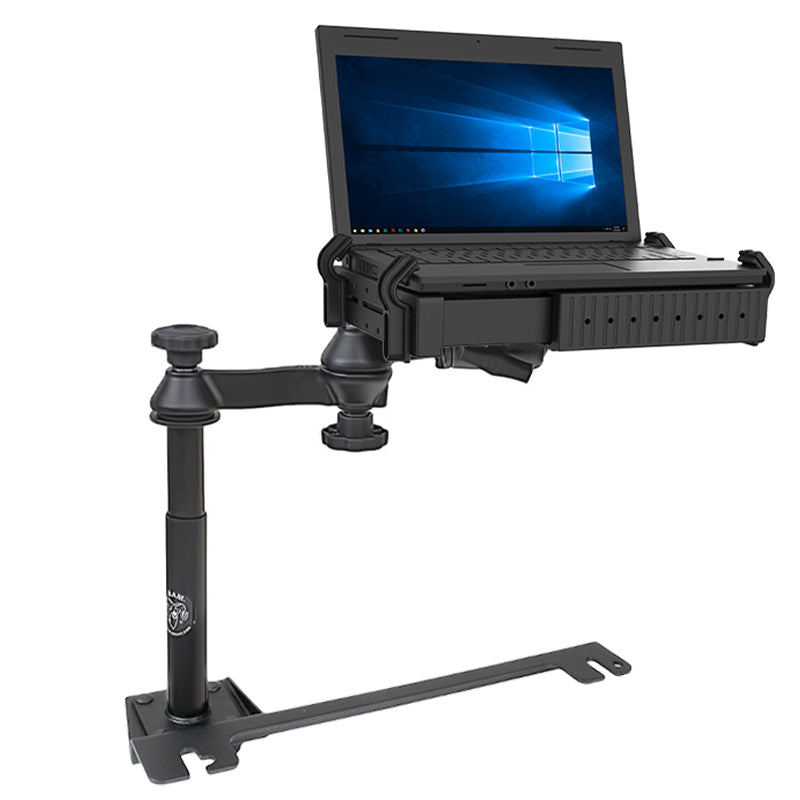

RAM^® No-Drill^™ Laptop Mount for Sprinter Van + More
Part #: RAM-VB-129-SW1 UPC: 793442901973 Patented Features RAM^® No-Drill^™ base offers low-profile mounting; telescoping pole allows for height adjustments Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

Product Information
Overview	This RAM^® No-Drill^™ vehicle base and laptop stand installs quickly into the specified vehicles using the existing hardware of the passenger side seat rails, and provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. The RAM^® rubber ball and socket system provides additional adjustability as well as shock and vibration damping, and the RAM^® Tough-Tray^™ is spring-loaded to accommodate 10" to 16" wide laptops (and 17" wide screens). This laptop holder features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally – allowing for a custom fit to support various sizes of laptops without blocking ports and drives. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™, and hole patterns on the perimeter of the holder facilitate the mounting of additional RAM^® systems to support GPS devices and other electronics.

Product Information

Overview

This RAM^® No-Drill^™ vehicle base and laptop stand installs quickly into the specified vehicles using the existing hardware of the passenger side seat rails, and provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. The RAM^® rubber ball and socket system provides additional adjustability as well as shock and vibration damping, and the RAM^® Tough-Tray^™ is spring-loaded to accommodate 10" to 16" wide laptops (and 17" wide screens). This laptop holder features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally – allowing for a custom fit to support various sizes of laptops without blocking ports and drives. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™, and hole patterns on the perimeter of the holder facilitate the mounting of additional RAM^® systems to support GPS devices and other electronics.

Specifications
hardware included	Assembly Hardware (2) M10 x 40mm Hex Bolts (2) M10 Lock Washers
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
hole pattern	Seat Bolt Distance: 16.5" center to center
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	14.2 lb
Additional Information	In 2005 and 2011 model year vehicles, the seat leg bolts may be tied to the air bag system. Tampering with these may result in disabling the air bag system and causing a severe safety hazard. The installation of this product into these vehicles should only be done by a Dodge Factory Authorized technician or Up-Fitter familiar with Police, Fire and Rescue Vehicles and their fleet use.

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for Sprinter Van + More

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for Sprinter Van + More

Part#: RAM-VB-129-SW1

UPC: 793442901973

$340.99

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

RAM^® No-Drill^™ base offers low-profile mounting; telescoping pole allows for height adjustments
Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) M10 x 40mm Hex Bolts
(2) M10 Lock Washers

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 16.5" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

14.2 lb

Additional Information:

In 2005 and 2011 model year vehicles, the seat leg bolts may be tied to the air bag system. Tampering with these may result in disabling the air bag system and causing a severe safety hazard. The installation of this product into these vehicles should only be done by a Dodge Factory Authorized technician or Up-Fitter familiar with Police, Fire and Rescue Vehicles and their fleet use.

Print

Instructions

Tough-Tray Assembly Guide

Upper Tele-Pole Assembly Guide

129 Series

Questions & Answers

Have a Question?

Ask a Question

Can someone sit in the passenger seat while this mount is installed?

Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable. If you want to be able to quickly remove the mount to make room for a passenger you could install our Remove-A-Pole base (RAM-VB-REM1).
