RAM^® No-Drill^™ Laptop Mount for the '14-25 Ram Promaster + More
Part #: RAM-VB-129-A-SW1 UPC: 793442947339 Patented Features RAM^® No-Drill^™ base offers low-profile mounting; telescoping pole allows for height adjustments Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

Product Information

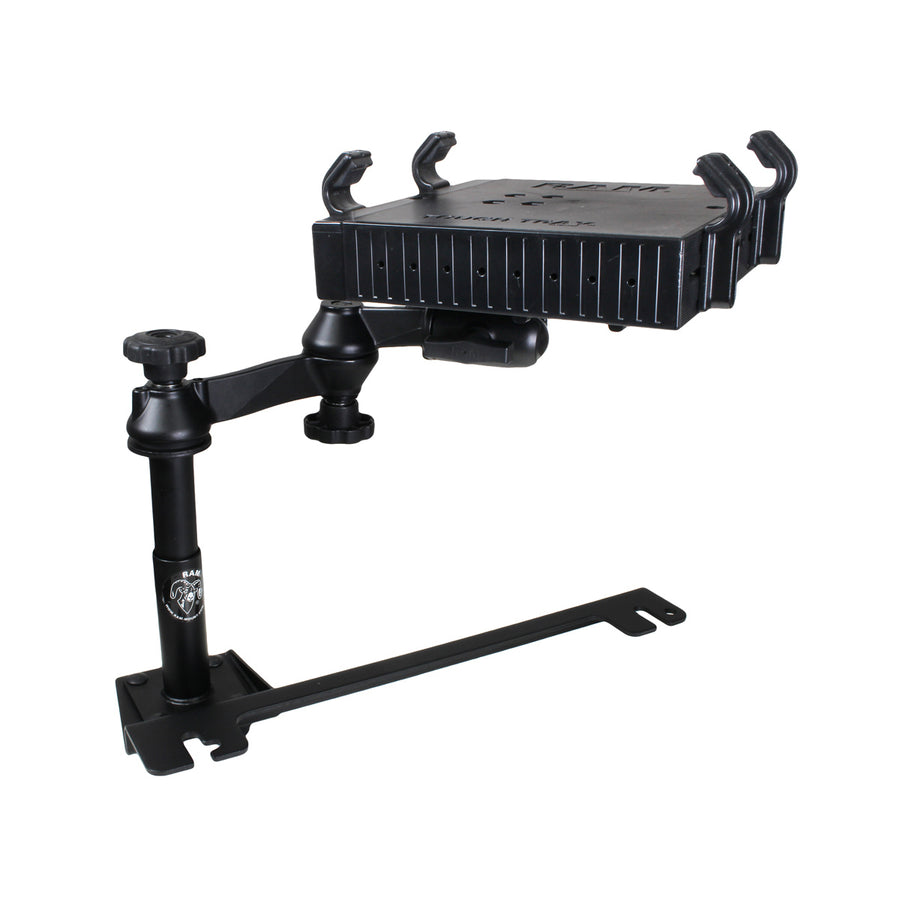

Overview	This No-Drill^™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Product Information

Overview

This No-Drill^™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Specifications
hardware included	Assembly Hardware (2) M10 x 40mm Hex Bolts (2) M10 Lock Washers
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
hole pattern	Seat Bolt Distance: 16.5" center to center
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	13.3 lb
Additional Information	The RAM-VB-129-A-SW1 will not work for bench/tube frame seats. For bench seat or tube frame seat model vehicles, consider the use of the RAM-VB-184T-SW1.

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for the '14-23 Ram Promaster + More

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for the '14-25 Ram Promaster + More

Part#: RAM-VB-129-A-SW1

UPC: 793442947339

$332.49

C Size

Size Guide

Ball Size
Arm Sizes

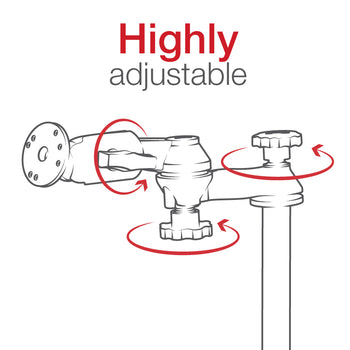

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

RAM^® No-Drill^™ base offers low-profile mounting; telescoping pole allows for height adjustments
Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) M10 x 40mm Hex Bolts
(2) M10 Lock Washers

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 16.5" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

13.3 lb

Additional Information:

The RAM-VB-129-A-SW1 will not work for bench/tube frame seats. For bench seat or tube frame seat model vehicles,
consider the use of the RAM-VB-184T-SW1.

Print

Instructions

Tough-Tray Assembly Guide

Upper Tele-Pole Assembly Guide

RAM No-Drill Seat Bases Instructions 129 Series-A

Questions & Answers

Have a Question?

Ask a Question

Will table top swing more than 180 degrees

Yes, these mount will swing complete 360 degrees.
Will this system work with the three seat promaster?

The three seat promaster has not been confirmed, but like most bench seat configurations this base can still be installed as long as there is access to the seat bolts of the right passenger seat.
