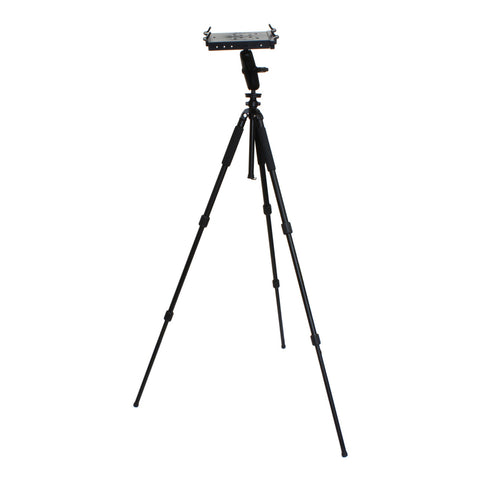

RAM® Tough-Tray™ II with Adjustable Tripod
Part #: RAM-TRIPOD1-234-6 UPC: 793442923265 Patented

Product Information
Overview	Whether you're shooting photos or video, need a temporary podium to give a presentation, or you're supporting survey equipment on a worksite, the RAM® tripod is ideally suited to deliver. Choose from several configurations that are ready to mount your camera, laptop, tablet, or even the RAM® Handi-Case™ or RAM® Multi-Pad™. Simple to adapt to most RAM® mounting solutions, the tripod also offers 3/8"-16 female, 3/8"-16 male, and ¼"-20 male threads for cameras and other devices. Comfortable grips make set up and handling a breeze. Attach a RAM® ball base to the top of the tripod or any of its legs for added versatility.

Product Information

Overview

Whether you're shooting photos or video, need a temporary podium to give a presentation, or you're supporting survey equipment on a worksite, the RAM® tripod is ideally suited to deliver. Choose from several configurations that are ready to mount your camera, laptop, tablet, or even the RAM® Handi-Case™ or RAM® Multi-Pad™. Simple to adapt to most RAM® mounting solutions, the tripod also offers 3/8"-16 female, 3/8"-16 male, and ¼"-20 male threads for cameras and other devices. Comfortable grips make set up and handling a breeze. Attach a RAM® ball base to the top of the tripod or any of its legs for added versatility.

Specifications
hardware included	Assembly Hardware Tripod Carrying Bag
product dimensions	Tripod Dimensions: Minimum Height: 12.5" Maximum Height: 56.5" Folded Length: 21.5"
tray dimensions	Width Range: 8.56" - 11.2" Side Arm Clamp Height: 2.75" max Tray Depth: 6" Tray Thickness: 1"
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Tripod: 40 lbs Mount: 4 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Box
Weight	8.7 lb

RAM® Tough-Tray™ II with Adjustable Tripod

Questions about our products? Email us for support.

Patented

RAM® Tough-Tray™ II with Adjustable Tripod

Part#: RAM-TRIPOD1-234-6

UPC: 793442923265

$364.99

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

hardware included:

Assembly Hardware
Tripod Carrying Bag

product dimensions:

Tripod Dimensions:
Minimum Height: 12.5"
Maximum Height: 56.5"
Folded Length: 21.5"

tray dimensions:

Width Range: 8.56" - 11.2"
Side Arm Clamp Height: 2.75" max
Tray Depth: 6"
Tray Thickness: 1"

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Tripod: 40 lbs
Mount: 4 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Box

Weight:

8.7 lb
