RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
Part #: RAM-TB-FHA3-SW1BU UPC: 793442027871 Patented Features Combines a 6" friction hinge arm and a 6" swing arm for precise single-axis pivoting and full 360° horizontal rotation Integrated Collar-Lock™ system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact Built-in cable retention keeps cords organized Backed by a lifetime warranty

Product Information

Overview

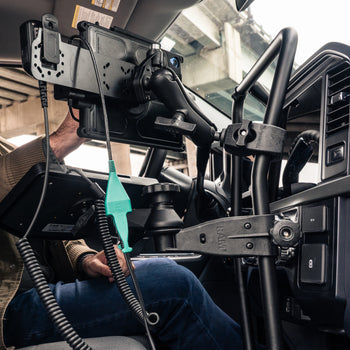

The RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™ (RAM-TB-FHA3-SW1BU) is a versatile attachment designed to mount a keyboard or other accessories to the RAM® Tough-Bar™ with smooth, controlled adjustability. This system combines a 6" friction hinge arm, a 6" swing arm, and a C size RAM® ball for full multi-axis positioning. The friction hinge delivers precise single-axis pivoting, ideal for moving a keyboard side to side, while the swing arm adds 360° of horizontal rotation. The integrated ball and socket connection allows for fine tilt adjustments, letting you position your accessory exactly where you need it or quickly move it aside to access vehicle controls. The built-in cable retention feature keeps cords neatly organized and secured along the arm, preventing snags or strain during adjustment. For added protection, the Collar-Lock™ system acts as a rotational limiter, blocking over-rotation that could send the mount into the dashboard during movement or impact. Together, these components ensure stable, vibration-resistant performance in demanding environments. Complete with a round ball base for compatibility across the RAM® Mounts ecosystem, the Friction Hinge 6" Arm & Swing Arm for Tough-Bar™ offers rugged flexibility and clean cable management for fleet, commercial, and personal vehicle setups.

Specifications
hardware included	Assembly Hardware
product dimensions	Length: 11.86" (center clamp to center socket)
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.2 lb

Patented

RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™

Name: RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
Brand: RAM Mounts
SKU: RAM-TB-FHA3-SW1BU
Price: 128.49 USD
Availability: InStock

Part#: RAM-TB-FHA3-SW1BU

UPC: 793442027871

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$128.49

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Combines a 6" friction hinge arm and a 6" swing arm for precise single-axis pivoting and full 360° horizontal rotation

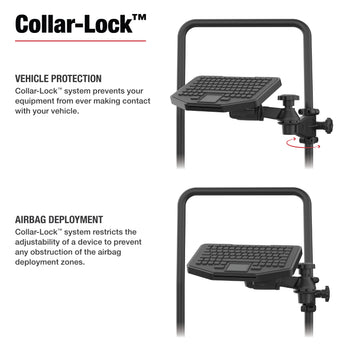

Integrated Collar-Lock™ system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact

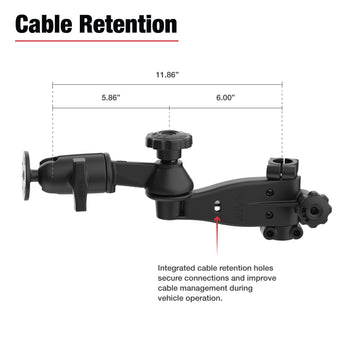

Built-in cable retention keeps cords organized
Backed by a lifetime warranty
