RAM® Friction Hinge Arm with Pin-Lock™ Ball for Tough-Bar™

Part #: RAM-TB-FHA2-1BU UPC: 793442027864

Features

Enables smooth, single-axis side-to-side pivoting for optimal keyboard or accessory positioning

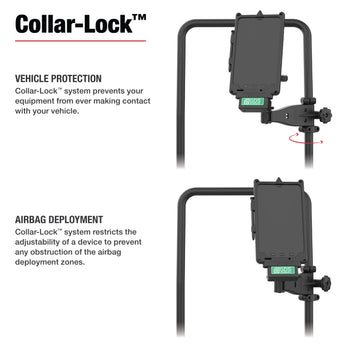

Integrated Collar-Lock™ system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact
Includes a C size ball base; complete your RAM® solution with an arm and holder

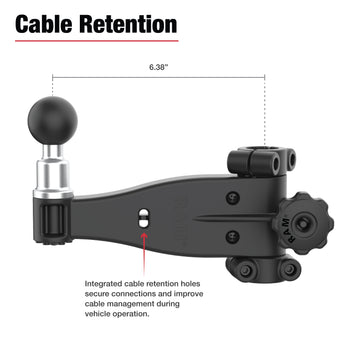

Built-in cable retention keeps cords organized
Backed by a lifetime warranty

RAM® Friction Hinge Arm with Pin-Lock™ Ball for Tough-Bar™

Product Information

Overview

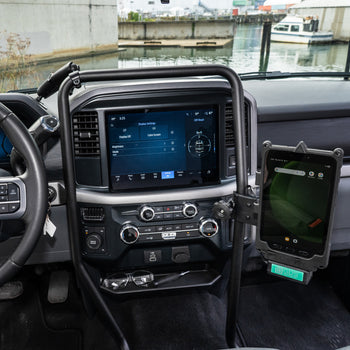

The RAM® Friction Hinge Arm with Pin-Lock™ Ball for Tough-Bar™ (RAM-TB-FHA2-1BU) is a modular attachment designed to let you build your own C size mounting solution on the RAM® Tough-Bar™. This setup features a C size RAM® Pin-Lock™ ball, allowing you to connect any C size double socket arm and device holder—ideal for tablets, GPS devices, or other accessories. When paired with a C size arm, this configuration offers up to 180° of articulation, while the integrated friction hinge provides smooth, single-axis pivoting for fine-tuned positioning or quick access to vehicle controls. For added safety, the Collar-Lock™ system acts as a rotational limiter, preventing over-rotation that could send the arm or device into the dashboard during adjustment or impact. Together, the friction hinge and Collar-Lock™ provide stable, vibration-resistant performance even in demanding environments. The built-in cable retention feature keeps cords neatly organized and secured along the arm, preventing snags or strain during adjustment. With its durable construction and RAM® compatibility, the Friction Hinge Arm for Tough-Bar™ delivers customizable adjustability, secure hold, and reliable protection for your equipment and vehicle interior.

Specifications
hardware included	Assembly Hardware
product dimensions	Length: 6.38" (center clamp to center ball)
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.95 lb

RAM® Friction Hinge Arm with Pin-Lock™ Ball for Tough-Bar™

Name: RAM® Friction Hinge Arm with Pin-Lock™ Ball for Tough-Bar™
Brand: RAM Mounts
SKU: RAM-TB-FHA2-1BU
Price: 72.49 USD
Availability: InStock

Part#: RAM-TB-FHA2-1BU

UPC: 793442027864

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$72.49

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
