RAM® Friction Hinge 10" Socket Arm with Ball for Tough-Bar™

Part #: RAM-TB-FHA1-1BU UPC: 793442027796

Features

Enables smooth, single-axis side-to-side pivoting for optimal keyboard or accessory positioning

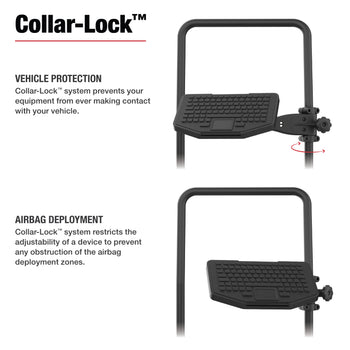

Integrated Collar-Lock™ system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact
Includes a round ball base for use attaching keyboards or accessories
Built-in cable retention keeps cords organized
Backed by a lifetime warranty

Product Information

Overview

The RAM® Friction Hinge 10" Socket Arm with Ball for Tough-Bar™ (RAM-TB-FHA1-1BU) is an attachment accessory that allows you to secure a keyboard or alternative accessory to the RAM® Tough-Bar™. Designed for smooth adjustability and vehicle safety, this mount combines a precision friction hinge with our Collar-Lock™ system. The friction hinge provides controlled, single-axis movement—allowing you to pivot your keyboard side to side for optimal positioning or to quickly access vehicle controls. Tighten the knob to hold your position firmly in place, or loosen it to reposition on the fly. The complementary Collar-Lock™ system acts as a protective stop on either side of the hinge, preventing over-rotation that could send the mount into the dashboard during adjustment or impact. Together, these components offer stable, vibration-resistant performance. This mount comes with a round ball base, ensuring RAM® Mounts compatibility for keyboards or DIY solutions. The built-in cable retention feature keeps cords neatly organized and secured along the arm, preventing snags or strain during adjustment. Ideal for fleet, service, and personal vehicles, the RAM® Friction Hinge Mount delivers streamlined adjustability and added protection for your device and vehicle interior.

Specifications
hardware included	Assembly Hardware
product dimensions	Length: 9.86" (center clamp to center socket)
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.45 lb

RAM® Friction Hinge 10" Socket Arm with Ball for Tough-Bar™

Name: RAM® Friction Hinge 10" Socket Arm with Ball for Tough-Bar™
Brand: RAM Mounts
SKU: RAM-TB-FHA1-1BU
Price: 85.49 USD
Availability: InStock

Part#: RAM-TB-FHA1-1BU

UPC: 793442027796

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$85.49

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
