Patented

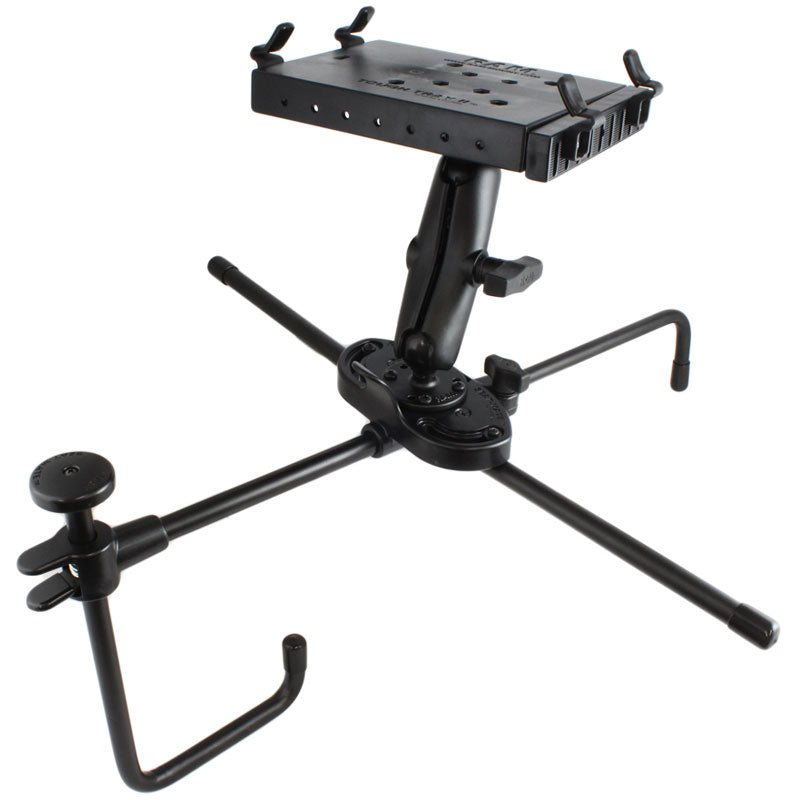

RAM® Tough-Tray™ II with RAM® Seat-Mate™

Part#: RAM-SM1-234-6
UPC: 793442924972

Kit Components

Previous Slide Next Slide
$206.49

Overview

Compact, portable, amazingly strong and no tools required are words that best describe the new RAM Seat-Mate™. Able to transform most any passenger seat into a workstation, simply unpack the mount from the compact bag, unfold the legs, and buckle it in. Truly innovative in design, this product is able to actively hold onto the seat and stabilize itself. For anyone who needs a temporary mobile workstation, this mounting solution is absolutely perfect. Designed to easily pack into a travel bag, suit case, or even under the seat of a vehicle, RAM makes it possible to create a comfortable workspace in minutes where ever your job takes you. The RAM Seat-Mate™ is perfect for laptops, tablets, and UMPC’s. The integrated rubber ball and socket system allows the user to achieve ergonomic viewing and typing angles. If you're a mobile professional, this product was designed for you.

hardware included:

Assembly Hardware

tray dimensions:

Width Range: 8.56" - 11.2"
Side Arm Clamp Height: 2.75" max
Tray Depth: 6"
Tray Thickness: 1"

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite
Powder coated steel

packaging type:

Retail Box

Weight:

0.66 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Tough-Tray™ II with RAM® Seat-Mate™
$206.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
