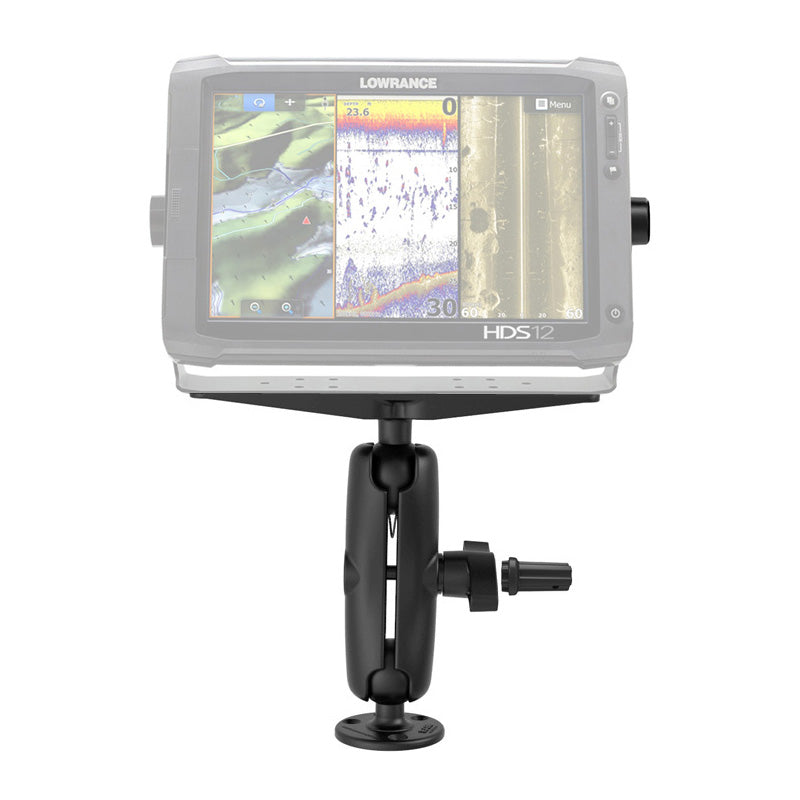

RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - D Size Medium
$207.49
Medium Arm, Locking Knob & Gimbal Knob
The RAM-SG-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock™ security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.
RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - D Size Medium
Overview
The RAM-SG-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock™ security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.
hardware included
(2) RAM Pin-Lock Security Keys
(4) .312" x .187" Shoulder Washers
product dimensions
Overall Height: 11.5"
socket to socket length
6.88"
hole pattern
See Drawings
plate size
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
ball size
D Size (2.25")
weight capacity
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
4.47 lb
Additional Information
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
