RAM® Pin-Lock™ Marine Electronic Mount - D Size Short
Part #: RAM-S-D-111U-C UPC: 793442945274

Product Information

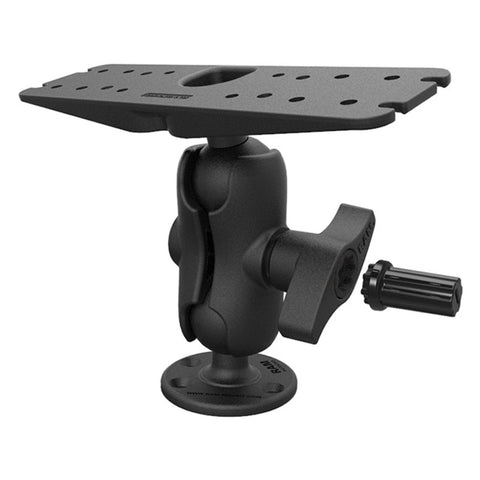

Overview	The RAM-S-D-111U-C consists of a 3.68" diameter round base, SHORT LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock™ security nut and key knob. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Product Information

Overview

The RAM-S-D-111U-C consists of a 3.68" diameter round base, SHORT LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock™ security nut and key knob. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Specifications
hardware included	(1) RAM Pin-Lock Security Key (4) .312" x .187" Shoulder Washers
product dimensions	Overall Length: 8.125"
socket to socket length	3.6"
hole pattern	See Drawings
plate size	Top Plate: 3" x 11" Bottom Plate: 3.68" Diameter
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	4.47 lb
Additional Information	The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

RAM® Pin-Lock™ Marine Electronic Mount - D Size Short

Questions about our products? Email us for support.

RAM® Pin-Lock™ Marine Electronic Mount - D Size Short

Part#: RAM-S-D-111U-C

UPC: 793442945274

D Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Garmin

echoMAP 70DV

ECHOMAP Ultra 122sv

ECHOMAP Ultra 126sv

GPSMAP 740s

GPSMAP 1020xs

GPSMAP 1040xs

GPSMAP 1222/xsv Touch

GPSMAP 1242xsv/Touch

Fishfinders and GPS Chartplotters

Humminbird

800 Series

Fishfinders and GPS Chartplotters

Lowrance

HDS Carbon 9

HDS Carbon 12

Hook²-12

Elite-9 CHIRP

Elite-9 Ti

Elite-9 Ti²

Elite-12 Ti

Elite-12 Ti²

Fishfinders and GPS Chartplotters

Raymarine

Axiom 7

Axiom 9

C120

Fishfinders and GPS Chartplotters

Additonal Information:

The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
