RAM^® Pin-Lock^™ Marine Electronic Mount - C Size Medium
Part #: RAM-S-111U UPC: 793442945229

Product Information

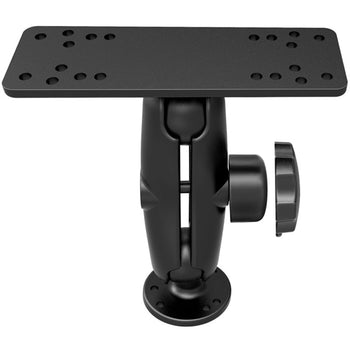

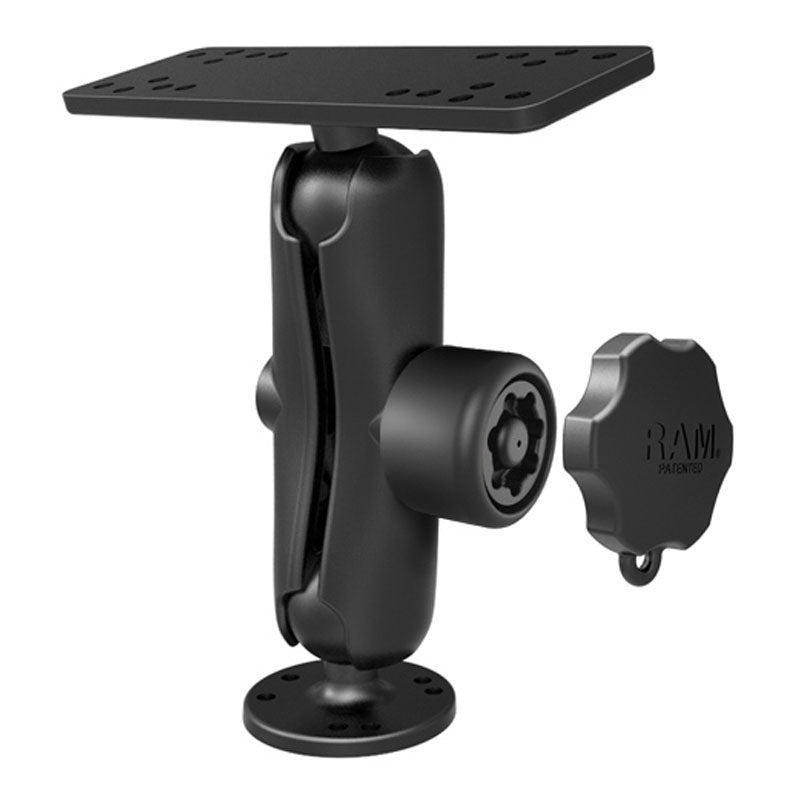

Overview	The RAM-S-111U consists of a 2.5" diameter round base, STANDARD LENGTH double socket arm, 6.25" x 2" rectangle base, RAM mixed combination Pin-Lock^™ security nut and key knob. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Specifications
hardware included	(1) RAM Pin-Lock Security Key
product dimensions	Overall Height: 7.35"
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter See Drawing
plate size	Top Plate: 6.25" x 2" Bottom Plate: 2.5"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.45 lb

RAM<sup>®</sup> Pin-Lock<sup>™</sup> Marine Electronic Mount - C Size Medium

Questions about our products? Email us for support.

RAM^® Pin-Lock^™ Marine Electronic Mount - C Size Medium

Part#: RAM-S-111U

UPC: 793442945229

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Garmin

ECHOMAP UHD2 5"

ECHOMAP UHD2 7"

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Fishfinders and GPS Chartplotters

Lowrance

Elite FS 7

Elite FS 9

HDS Carbon 7

HDS LIVE 7

Hook Reveal 7 Series

Hook Reveal 9 Series

Fishfinders and GPS Chartplotters

Humminbird

Fishfinders and GPS Chartplotters

Raymarine

Fishfinders and GPS Chartplotters

$74.49
