RAM® X-Grip® Mount with Double U-Bolt Base for 9"-10" Tablets
$159.49

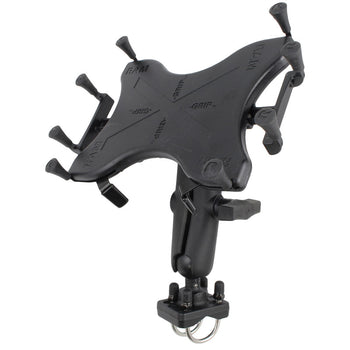

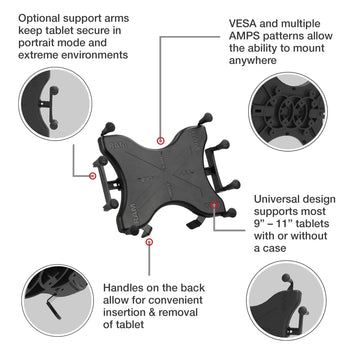

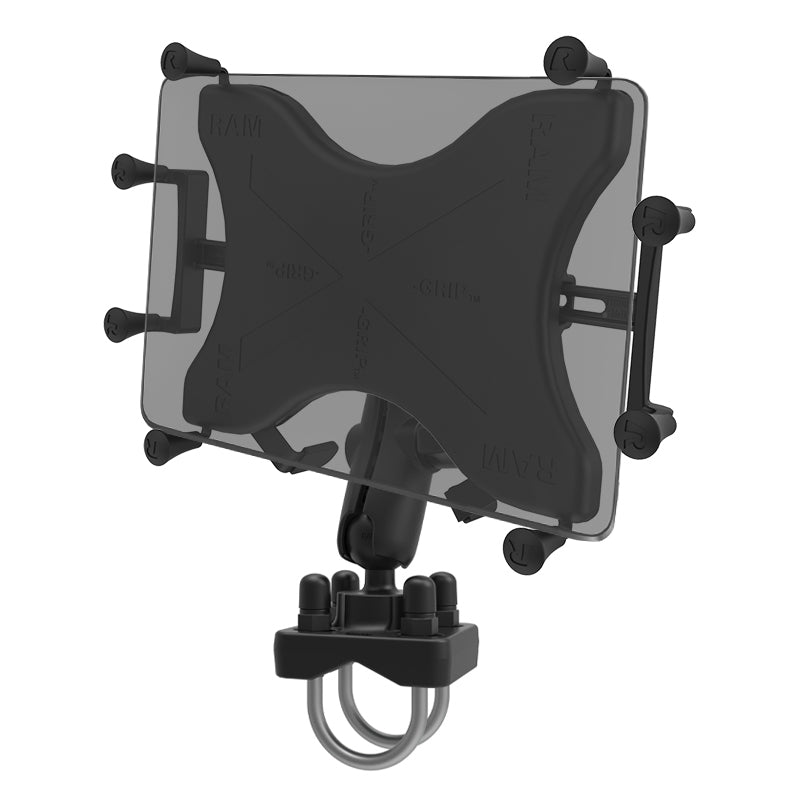

The RAM-HOL-UN9-235U consists of a double stainless steel u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 10" tablets. Included in this package is hardware that will accommodate rails from 1" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
RAM® X-Grip® Mount with Double U-Bolt Base for 9"-10" Tablets
Overview
The RAM-HOL-UN9-235U consists of a double stainless steel u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 10" tablets. Included in this package is hardware that will accommodate rails from 1" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
hardware included
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

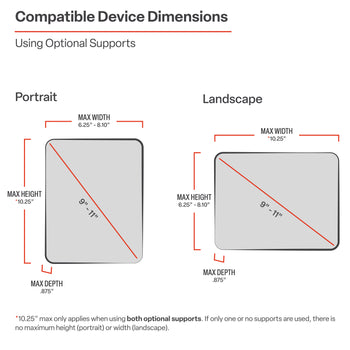

holder dimensions

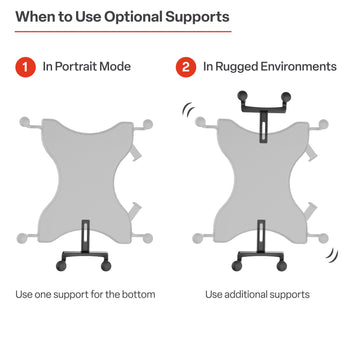

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
clamp range
1" - 1.25" diameter
socket to socket length
3"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
2.45 lb
