Overview

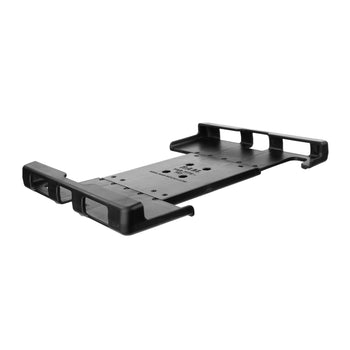

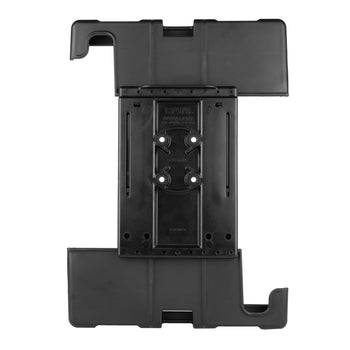

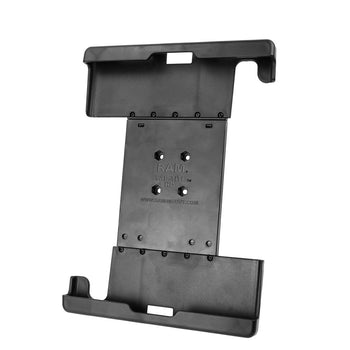

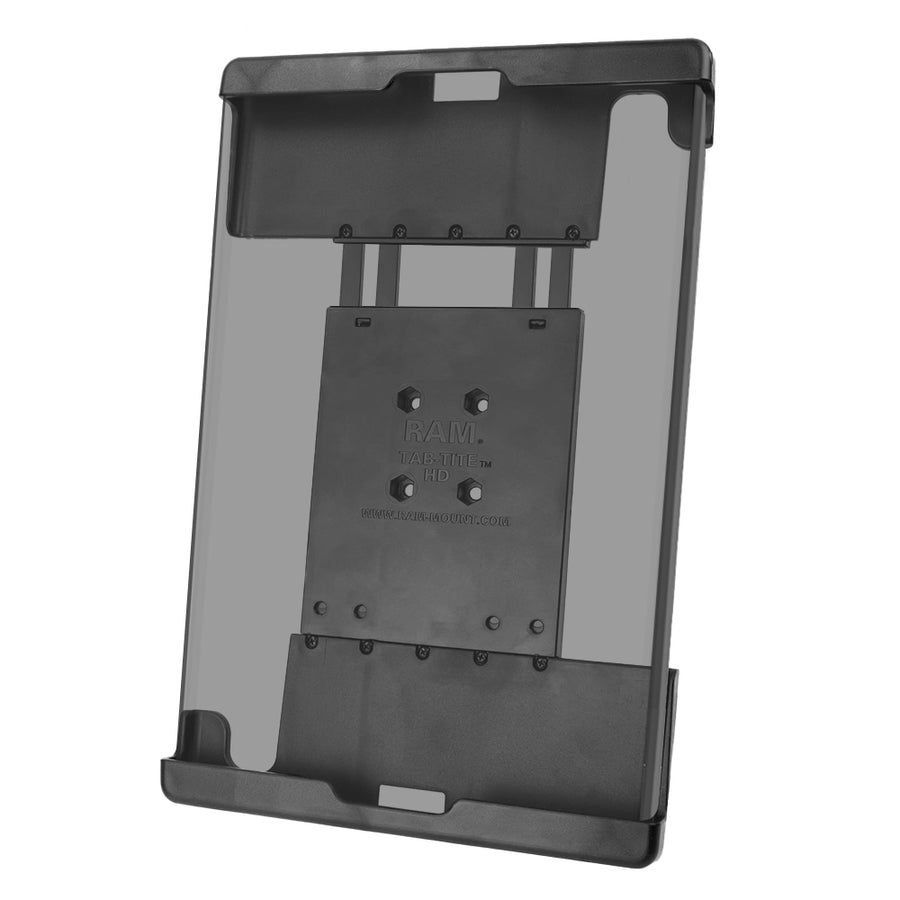

The RAM® Tab-Tite™ Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case (RAM-HOL-TAB36U) is a spring-loaded, quick-release device holder. The spring-loaded design makes it easy to insert and remove your tablet while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. This holder is compatible with the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case.
Features
- Spring-loaded holder secures the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions:
Height Range: 11.5" - 14"
Max Width: 8.125"
Max Depth: .79"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.74 lb
Additional Information:
This holder is intended for larger, heavy duty cases. Thin or light duty cases may sit relatively loosely in the holder. For a better solution to support lighter duty cases, see RAM® X-Grip® option RAM-HOL-UN11U.
If your case has a built-in hand strap or kickstand, offset risers may be required: RAM-HOL-TAB-RISER2U.
