Overview

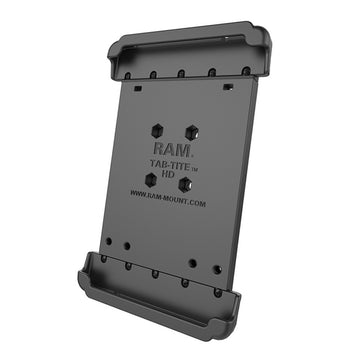

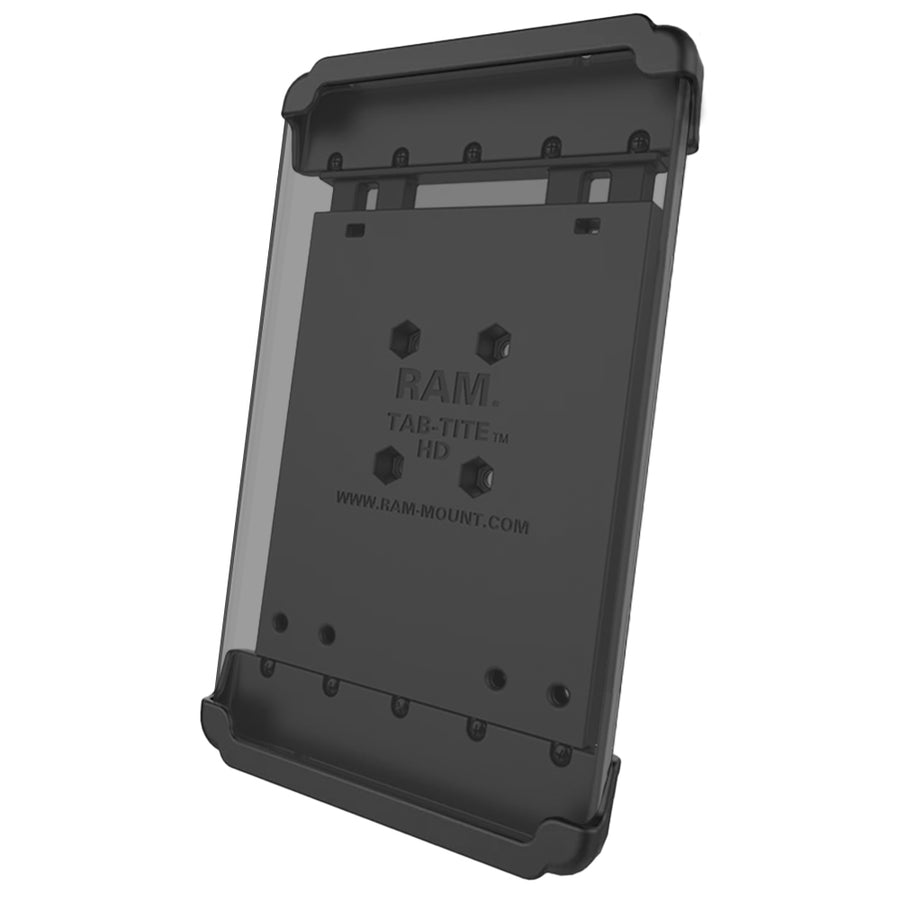

The RAM® Tab-Tite™ spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab Tab E 8.0, Tab A 8.0 and Tab A 8.4. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Features
- Spring-loaded holder secures most 8" tablets including Samsung Tab A 8.4; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions:
Height Range: 8.08" - 10.69"
Width Range: 3.77" - 4.96"
Depth Range: .13" - .36"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.52 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
I don't see my tablet listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
You can find a list of compatible dimensions for this cradle in the product information section. If you want to make sure your tablet will fit in this cradle you can measure your tablet to make sure it falls within the compatible dimensions.
