Overview

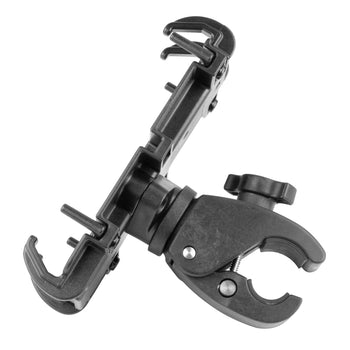

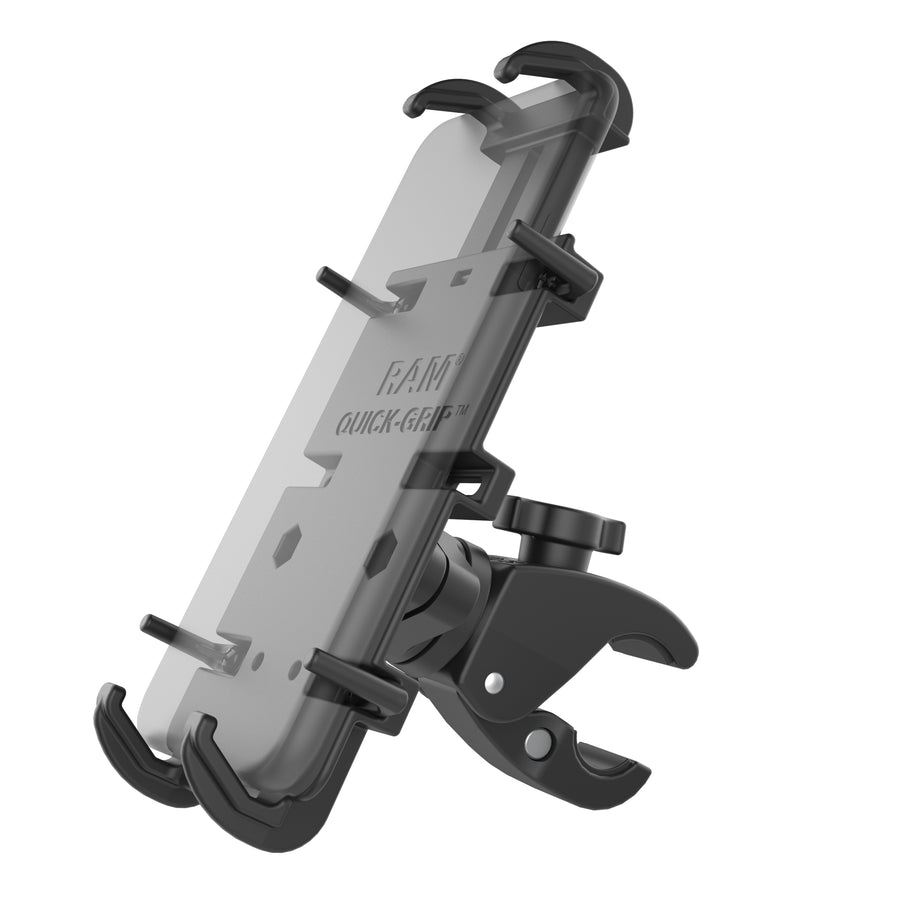

The spring-loaded RAM® Quick-Grip™ with Low-Profile RAM® Tough-Claw™ (RAM-HOL-PD4-400-1U) consists of the small RAM® Tough-Claw™ base and large RAM® Quick-Grip™ phone holder, connected by the RAM® Pin-Lock™ adapter. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. With the RAM® Tough-Claw™ base connected, easily attach the Quick-Grip™ on round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter. This kit is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

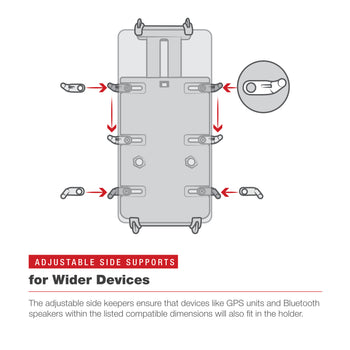

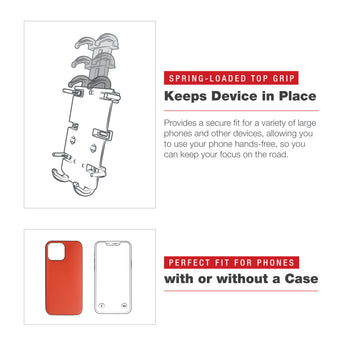

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones; easily insert and remove your phone with one hand

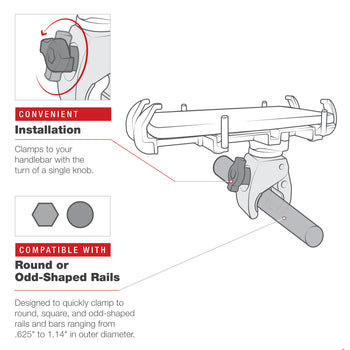

- Includes low-profile RAM® Tough-Claw™ to easily attach to rails and bars ranging from .625" to 1.14" in outer diameter
- Made of high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware

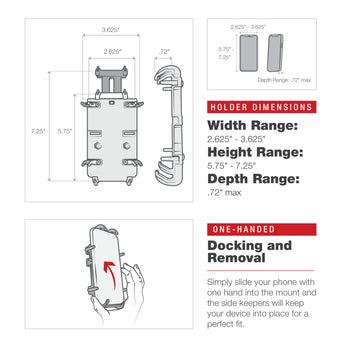

holder dimensions:
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"
clamp range:
.625" - 1.14" diameter
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.64 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
Can this be adapted to be used with the Vibe-Safe adapter (RAP-462NPT)?
No, this is not compatible with RAP-462NPT. You would have to do a setup like RAM-HOL-PD4-238AU + RAP-B-400U + RAP-462NPT + RAM-B-201U.
-
Will my Samsung s8 that I use for trail riding fit into this.
Looking at the dimensions of the Samsung S8, this Quick-Grip will work. If you have a case on your device, then you will want to compare your Height, width, and depth to the holder dimensions we have on this product page. Please double-check the diameter of your bar; this holds .625" - 1.14" diameter.
-

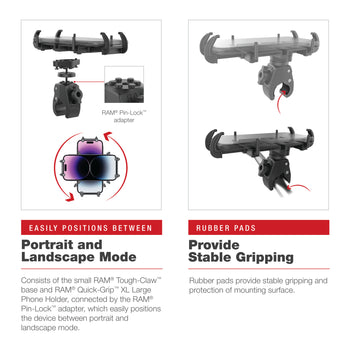

so i have got RAM quick grip XL phone mount with low profile tough claw but i want to add landscape mode to it, which part do i need specifically? Can you guys please help? I am unable to find Pin lock adapter, also this is the part number if needed -- RAM-HOL-PD4-400-1U
This part will not be able to easily rotate once mounted. You would need to take out a screw and turn the part in the direction you want.
-
Are you able to turn the phone with this mount or does it always sit sideways?
No, the RAM-HOL-PD4-400-1U does not articulate and will hold the phone perpindicular to the bar or railing used as the mounting point.
-
can the claw be changed to a bigger size with this kit? (RAM-HOL-PD4-400-1U)
No, the RAM-HOL-PD4-400-1U is not available with a larger Tough Claw. You can build out a similar kit using a RAM-HOL-UN10BU, a RAM-B-201U-A, and either the RAP-B-401U or RAP-B-404U, but there isn't a kit that contains all of those components.
