GDS® Uni-Conn™ Locking Vehicle Bundle for Samsung Tab A11+

Part #: RAM-GDS-U4-SAM88-1-KIT2 UPC: 793442033926 Patented & Pats. Pend.

Features

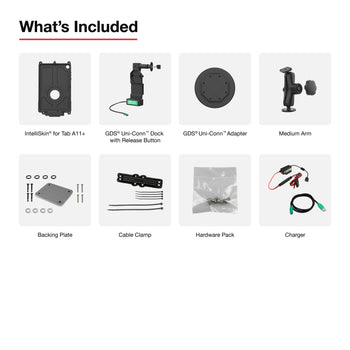

Bundle includes the GDS® Uni-Conn™ key-locking dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® Next Gen for Samsung Tab A11+, C size double ball mount with medium arm, backing plate adapter, 10-30V hardwire charger with USB-A connector, USB-A male to USB-C male 2.0 entension cable, and cable clamp
Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power
Uni-Conn™ dock features a quick-release button for easy device insertion and removal

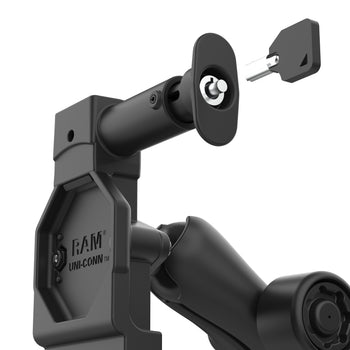

Uni-Conn™ dock's key-lock and locking knob on arm provide additional theft deterrence
Backed by a 3-year warranty

GDS® Uni-Conn™ Locking Vehicle Bundle for Samsung Tab A11+

Product Information

Overview

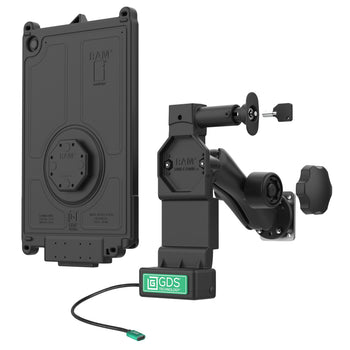

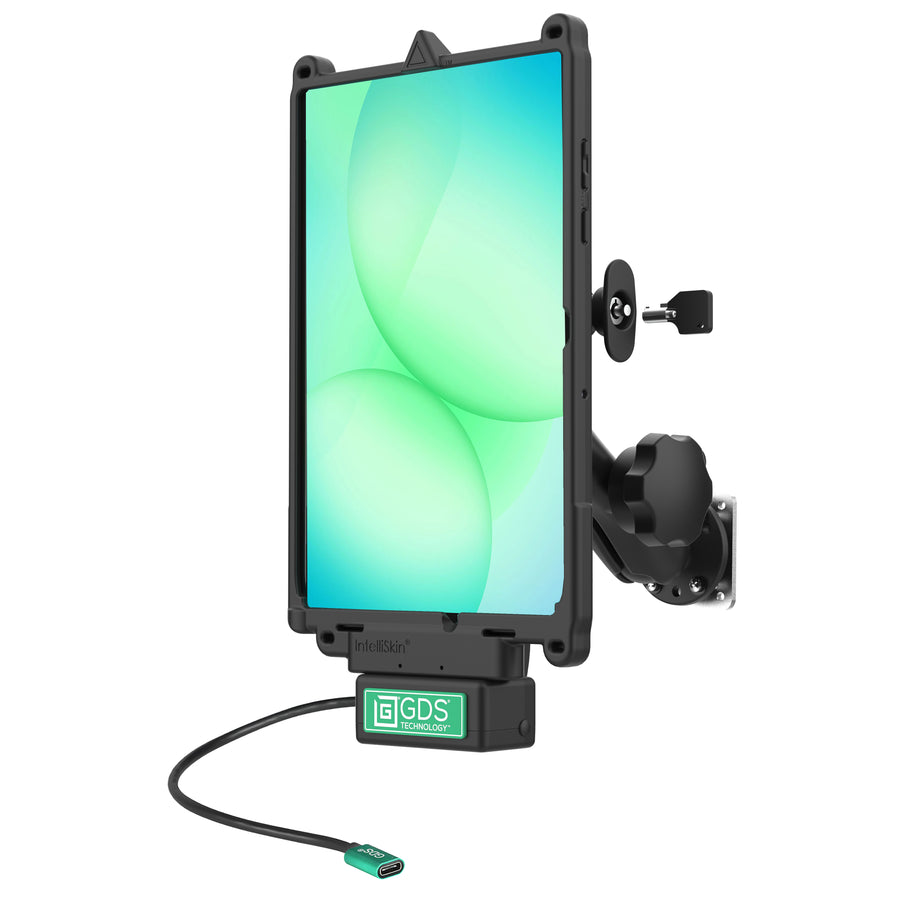

The GDS® Uni-Conn™ Locking Vehicle Bundle with Release Button for Samsung Tab A11+ (RAM-GDS-U4-SAM88-1-KIT2) is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS® Uni-Conn™ locking dock with right lock, Uni-Conn™ adapter, IntelliSkin® for the Tab A11+, and double ball mount with backing plate and locking knob. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™

Specifications
hardware included	Assembly Hardware (2) Keys (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers (1) Cable Clamps (1) USB Cable (1) Vehicle Hardwire Charger
socket to socket length	4.66"
ball size	C Size (1.5")
materials	Steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
input voltage	10-30VDC
output voltage	5-15V @ 3A
power output	45W
output current	2.5A max
operating temperature	-10°C to +70°C
storage temperature	-40°C to +70°C
regulatory	Over Voltage Protection Short Circuit Protection Reverse Polarity Protection RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture Resistant FCC, CE, UKCA, IC
certifications	E-Mark Certification RCM Certification IEC/UL 62368-1
Warranty	3 year warranty
Weight	3.4 lb

Video Thumbnail — YouTube video thumbnail for ZMJuV7iFs8E

Patented & Pats. Pend.

GDS® Uni-Conn™ Locking Vehicle Bundle for Samsung Tab A11+

Name: GDS® Uni-Conn™ Locking Vehicle Bundle for Samsung Tab A11+
Brand: RAM Mounts
SKU: RAM-GDS-U4-SAM88-1-KIT2
Price: 441.49 USD
Availability: InStock

One Dock to Connect Them All™

Part#: RAM-GDS-U4-SAM88-1-KIT2

UPC: 793442033926

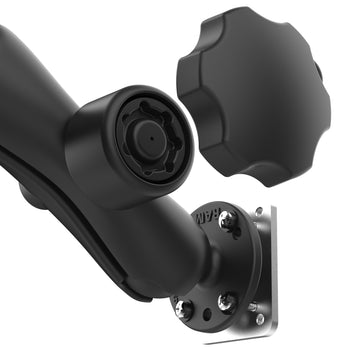

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$441.49

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

RAM® Screen Protector for Samsung Tab A9+ & Tab A11+

$22.49

Overview

Features

Bundle includes the GDS® Uni-Conn™ key-locking dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® Next Gen for Samsung Tab A11+, C size double ball mount with medium arm, backing plate adapter, 10-30V hardwire charger with USB-A connector, USB-A male to USB-C male 2.0 entension cable, and cable clamp
Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power
Uni-Conn™ dock features a quick-release button for easy device insertion and removal
Uni-Conn™ dock's key-lock and locking knob on arm provide additional theft deterrence
Backed by a 3-year warranty

hardware included:

Assembly Hardware
(2) Keys
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamps
(1) USB Cable
(1) Vehicle Hardwire Charger

socket to socket length:

4.66"

ball size:

C Size (1.5")

materials:

Steel
Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

input voltage:

10-30VDC

output voltage:

5-15V @ 3A

power output:

45W

output current:

2.5A max

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications:

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty:

3 year warranty

Weight:

3.4 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
