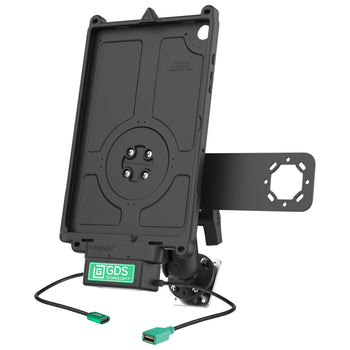

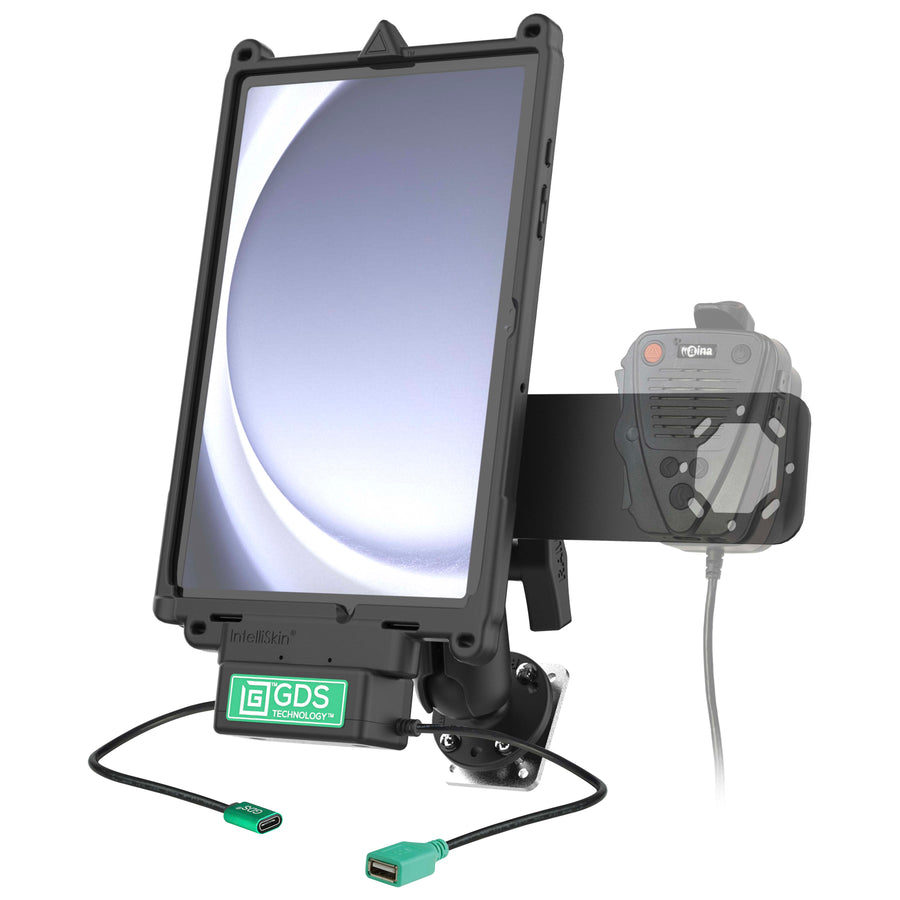

GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab A9+
Part #: RAM-GDS-U1-SAM88-KIT3 UPC: 793442029868 Patented & Pats. Pend. Features Bundle includes GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab A9+, a microphone bracket, hardwire charger, and a double ball mount with backing plate Dock features GDS® Technology™ for charging capabilities; power delivered via USB-C connector; connect AINA's charging vehicle cradle via USB-A connector AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT Made of high-strength composites for durability and reliability in the most demanding environments Backed by a 3-year warranty

Part #: RAM-GDS-U1-SAM88-KIT3 UPC: 793442029868 Patented & Pats. Pend.

Features

Bundle includes GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab A9+, a microphone bracket, hardwire charger, and a double ball mount with backing plate
Dock features GDS® Technology™ for charging capabilities; power delivered via USB-C connector; connect AINA's charging vehicle cradle via USB-A connector
AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a 3-year warranty

GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab A9+

Product Information
Overview	The GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT3) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Tab A9+ into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab A9+, a microphone bracket, hardwire charger, and a double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects via the USB-A peripheral pigtail to supply power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide consistent power to the IntelliSkin®-protected Tab A9+, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

Product Information

Overview

The GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT3) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Tab A9+ into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab A9+, a microphone bracket, hardwire charger, and a double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects via the USB-A peripheral pigtail to supply power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide consistent power to the IntelliSkin®-protected Tab A9+, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.

Specifications
hardware included	Assembly Hardware Microphone Bracket Hardwire Charger (2) USB Cable Clamps Dashboard Backing Plate with Hardware
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
ball size	C Size (1.5")
materials	Steel Marine-grade aluminum High strength composite
packaging type	Box
output voltage	5V - 12V @ 3A
power output	15W
input connector	USB Type-C USB Type A for 1 Peripheral
input cable length	215mm
output cable length	215mm
peripheral output	500mAh
Weight	5.02 lb

Questions about our products? Email us for support.

Patented & Pats. Pend.

GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab A9+

One Dock to Connect Them All™

Part#: RAM-GDS-U1-SAM88-KIT3

UPC: 793442029868

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$431.99

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Bundle includes GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab A9+, a microphone bracket, hardwire charger, and a double ball mount with backing plate
Dock features GDS® Technology™ for charging capabilities; power delivered via USB-C connector; connect AINA's charging vehicle cradle via USB-A connector
AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a 3-year warranty

hardware included:

Assembly Hardware
Microphone Bracket
Hardwire Charger
(2) USB Cable Clamps
Dashboard Backing Plate with Hardware

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

C Size (1.5")

materials:

Steel
Marine-grade aluminum
High strength composite

packaging type:

Box

output voltage:

5V - 12V @ 3A

power output:

15W

input connector:

USB Type-C
USB Type A for 1 Peripheral

input cable length:

215mm

output cable length:

215mm

peripheral output:

500mAh

Weight:

5.02 lb
