Patent Pending

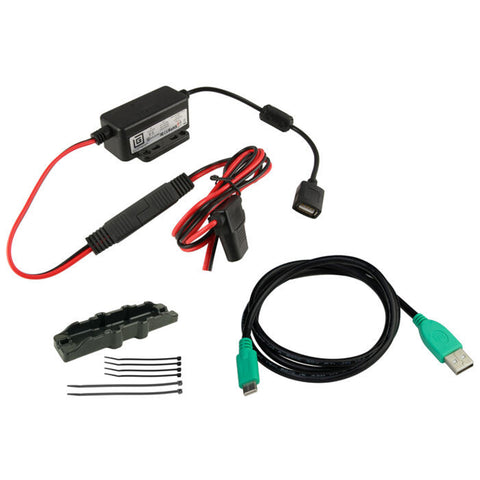

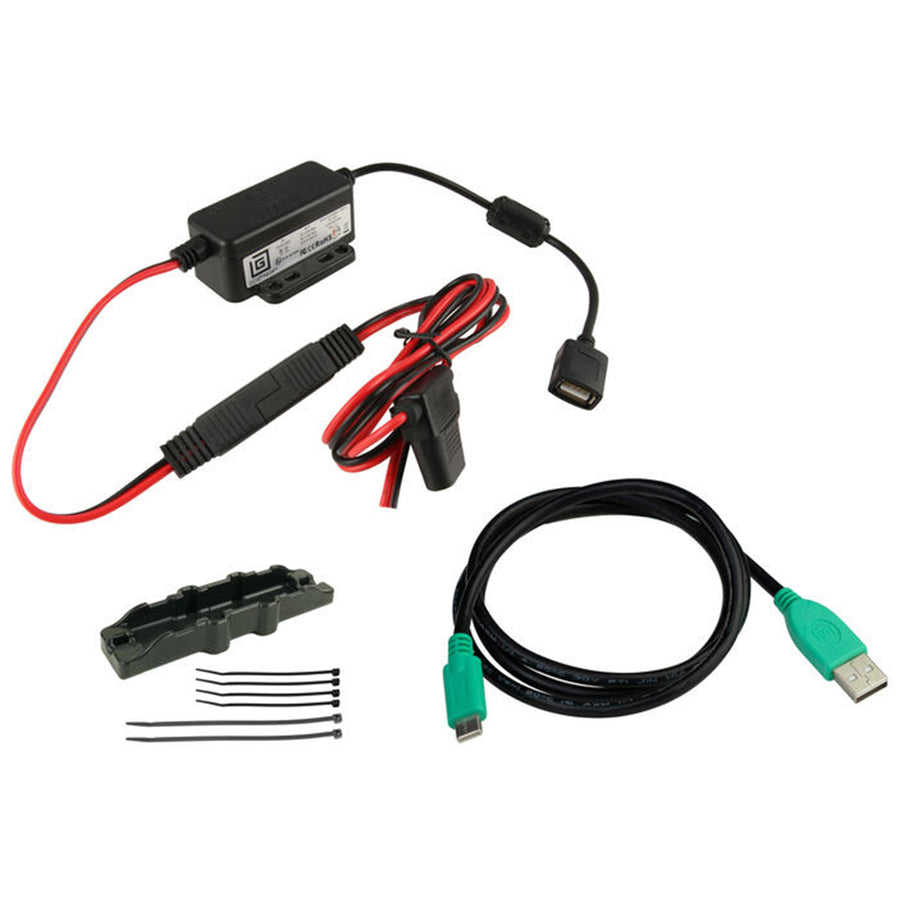

GDS® Modular 10-30V Hardwire Charger with Type-C 2.0 Cable
Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-USBC-V7B1-1U
UPC: 793442024269
$46.49

Overview

The GDS® Modular 10-30V Hardwire Charger with Type-C 2.0 Cable (RAM-GDS-CHARGE-USBC-V7B1-1U) connects to a power source and provides power to any GDS® vehicle solution. When it comes time to upgrade, the quick disconnect feature enables you to avoid any rewiring by unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.®

Features

  • Hardwire charger features USB Type-A female connector
  • Comes with GDS® Genuine USB Type-C 2.0 Cable; featuring USB Type-A male connection and USB Type-C male connection
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

hardware included:

(1) USB Type-C to Type-A 2.0 Cable

packaging type:

Poly Bag

input voltage:

10-30VDC

output voltage:

5-9VDC*

output current:

2.5A max

input connector:

USB Type-C

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

.2 Meter

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications:

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty:

3 year warranty

Weight:

0.51 lb

Print

Instructions

Instructions for Modular Hardwire Charger
