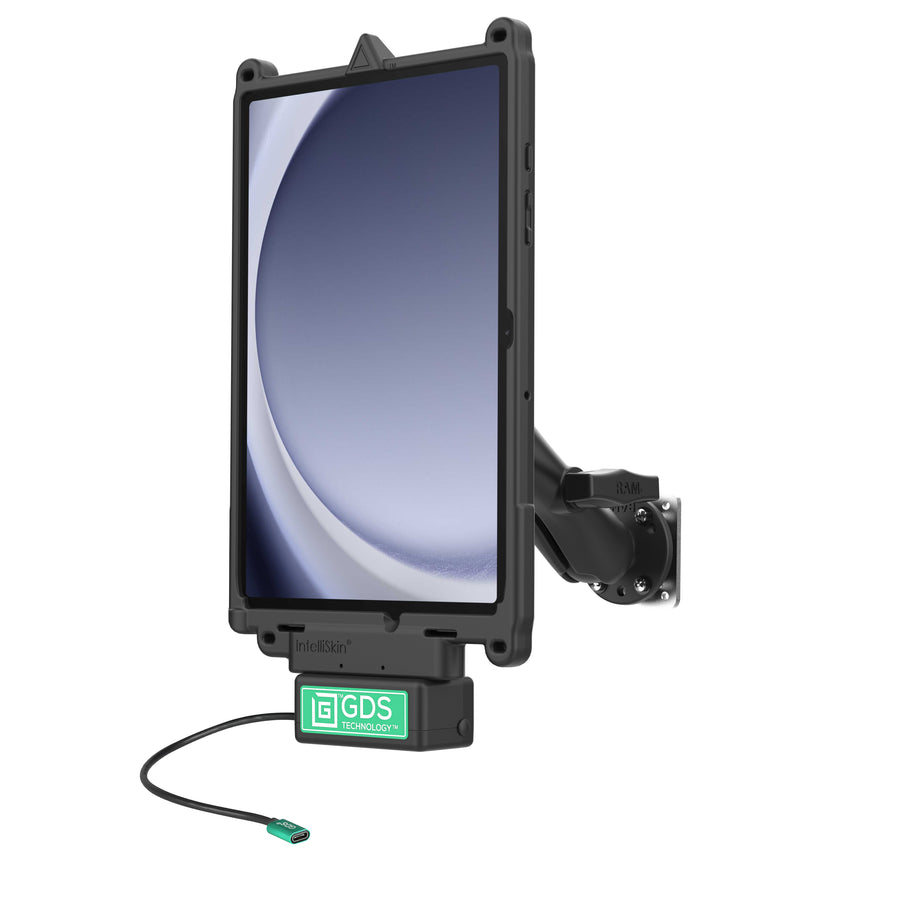

GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9+
One Dock to Connect Them All™
$330.99
Non-Locking
Features
- Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9+, C size double ball mount with medium arm, backing plate adapter, and cable clamp
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- Uni-Conn™ dock features an easy device insertion and removal
- Backed by a 3-year warranty
The GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT1) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A9+, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™
GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9+
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT1) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab A9+, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™
hardware included
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
socket to socket length
4.66"
ball size
C Size (1.5")
materials
Steel
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A max
power output
15W
Warranty
3 year warranty
Weight
3.08 lb
