GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for ESChat & Zello

Part #: RAM-GDS-U1-RSM-A04 UPC: 793442031809 Patented & Pats. Pend.

Features

GDS® Uni-Conn™ Push-to-Talk mounting bundle; IntelliSkin® sold separately
Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
Uni-Conn™ dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for ESChat & Zello

Product Information

Overview

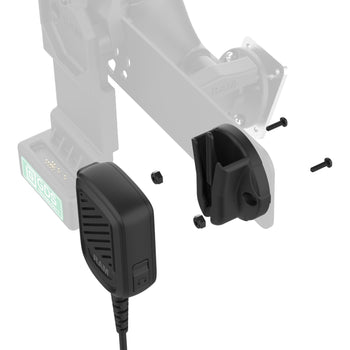

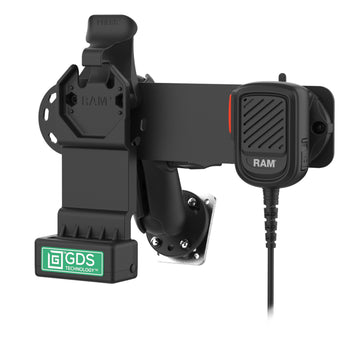

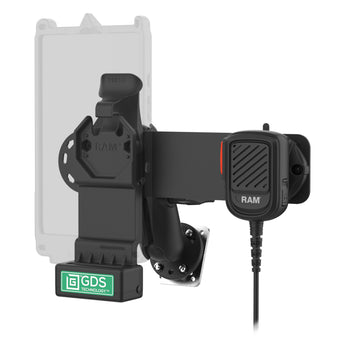

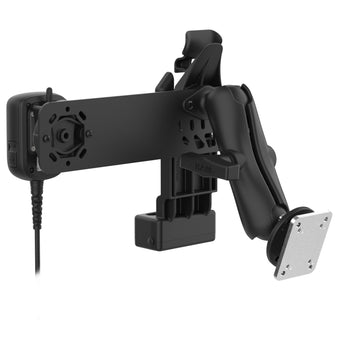

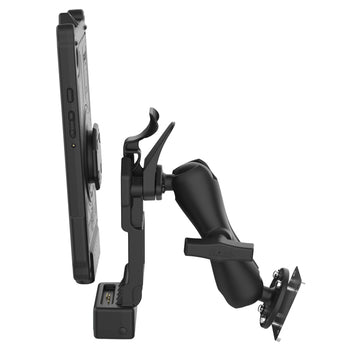

The GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for ESChat & Zello (RAM-GDS-U1-RSM-A04) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin®, ideal for organizations already using IntelliSkin® device sleeves or deploying a mixed-device fleet within the GDS® Ecosystem™. This bundle includes the universal Uni-Conn™ dock, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with ESChat and Zello, it ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces.

Specifications
hardware included	(1) Remote Speaker Mic (1) Uni-Conn™ Dock (1) Mic Bracket (1) Mic Clip Receiver (1) Double Ball Mount with Backing Plate (1) Hardwire Charger (2) Cable Clamp Kits
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
materials	Steel Marine-grade aluminum High strength composite
packaging type	Box
power specifications	Remote Speaker Mic: Operating Voltage: 1.2VDC - 5VDC Current Consumption 100UA - 500UA Output Impedance @ 1KHZ Max 2.2K Ohms Signal to Noise Ratio: 1KHZ 60+ DB Max Input SPL 110DB Moisture Ingress Rating IP67
output voltage	5V - 15V @ 3A
power output	15W
input connector	USB Type-C USB Type-C for 1 Peripheral
input cable length	215mm
output cable length	215mm
peripheral output	500mAh
Warranty	3 year warranty
Weight	4.81 lb

Video Thumbnail — YouTube video thumbnail for 56MqlyzgRDY

Patented & Pats. Pend.

GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for ESChat & Zello

Name: GDS® Uni-Conn™ PTT Remote Speaker Mic Bundle for ESChat & Zello
Brand: RAM Mounts
SKU: RAM-GDS-U1-RSM-A04
Price: 555.49 USD
Availability: InStock

One Dock to Connect Them All™

Part#: RAM-GDS-U1-RSM-A04

UPC: 793442031809

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$555.49

Options

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

GDS® Uni-Conn™ Push-to-Talk mounting bundle; IntelliSkin® sold separately
Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
Uni-Conn™ dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

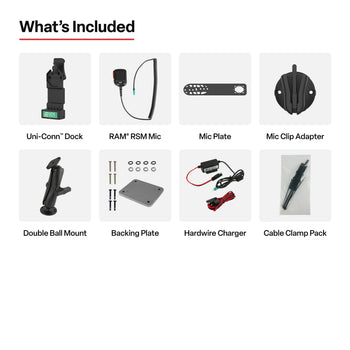

hardware included:

(1) Remote Speaker Mic
(1) Uni-Conn™ Dock
(1) Mic Bracket
(1) Mic Clip Receiver
(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(2) Cable Clamp Kits

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

materials:

Steel
Marine-grade aluminum
High strength composite

packaging type:

Box

power specifications:

Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67

output voltage:

5V - 15V @ 3A

power output:

15W

input connector:

USB Type-C
USB Type-C for 1 Peripheral

input cable length:

215mm

output cable length:

215mm

peripheral output:

500mAh

Warranty:

3 year warranty

Weight:

4.81 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
