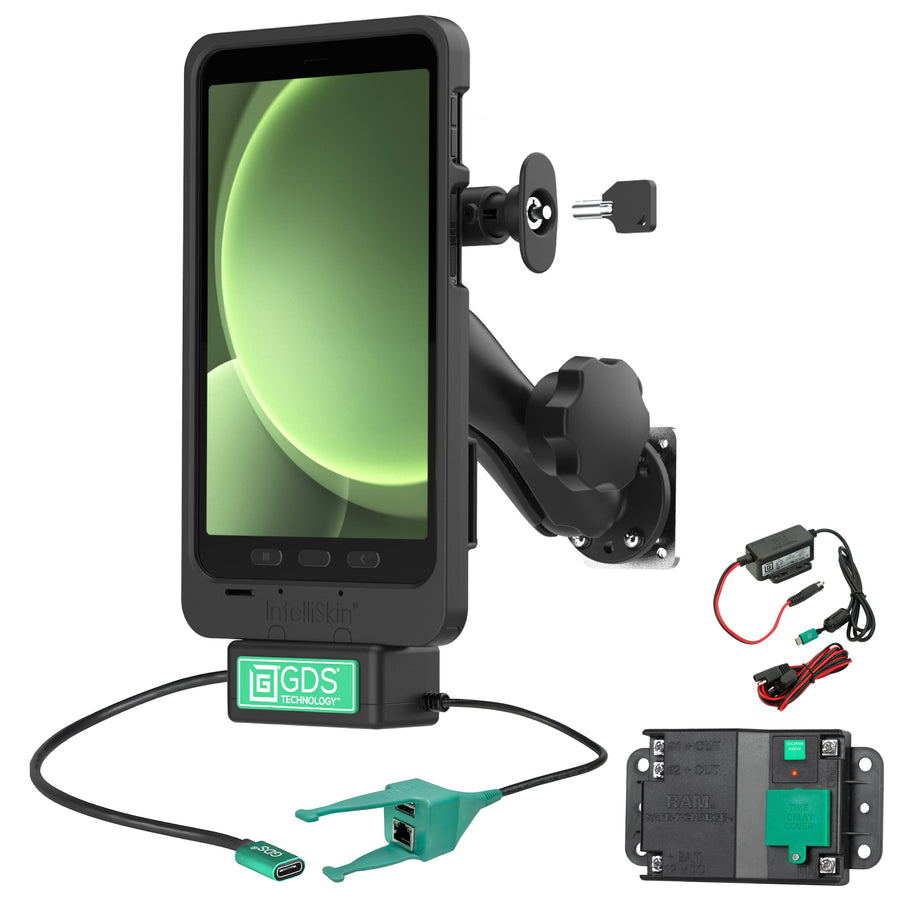

GDS® Uni-Conn™ Locking Thin-Case™ Vehicle Kit for Samsung Tab Active5
Overview
The GDS® Uni-Conn™ Locking Thin-Case™ Vehicle Kit for Samsung Tab Active5 (RAM-GDS-SAM93TCD-U4-V21C-SWT1) is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS® Uni-Conn™ locking dock with release button, Uni-Conn™ adapter, IntelliSkin® Thin-Case™ for the Tab Active5, hardwire charger, RAM® Safe-T-Charge™ Battery Protection System, and double ball mount with backing plate and locking knob. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, and also includes an RJ45 port for peripheral support. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™
Features

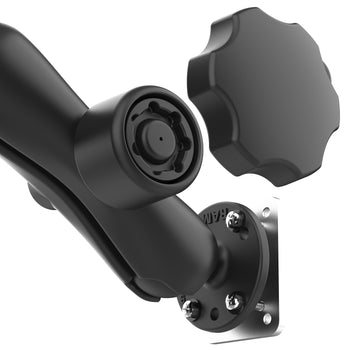

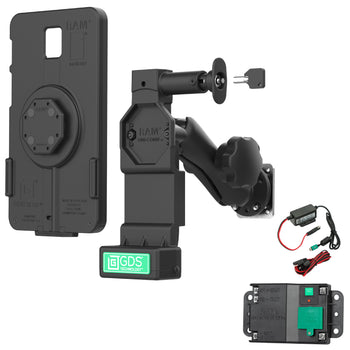

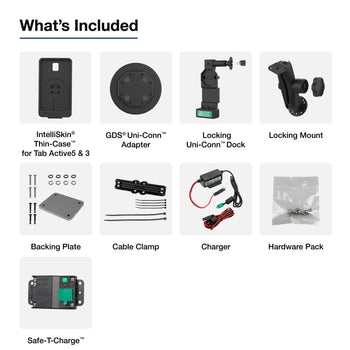

- Bundle includes the GDS® Uni-Conn™ locking dock with release button, Uni-Conn™ adapter, IntelliSkin® Thin-Case™ for the Tab Active5, 10-30V hardwire charger with USB-C male connector, RAM® Safe-T-Charge™ Battery Protection System, and double ball mount with backing plate and locking knob
- Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power and includes RJ45 connection for peripheral support
- Uni-Conn™ dock's key-lock and locking knob on arm provide additional theft deterrence

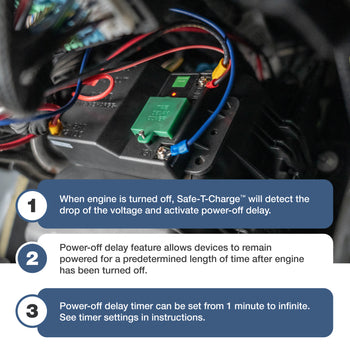

- Included RAM® Safe-T-Charge™ features automatic battery protection, cutting accessory power based on ignition state or battery voltage to prevent battery depletion
- Backed by a 3-year warranty
hardware included:
Assembly Hardware
socket to socket length:
4.66"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
input voltage:
10-30VDC
output voltage:
5-9VDC*
output current:
2.5A max
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Weight:
3.55 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
