IntelliSkin^® Thin-Case^™ for Tab Active5 & 3
Part #: RAM-GDS-SKIN-SAM93-TCD UPC: 793442021190 Patented & Pats. Pend. Features Two-piece, hard plastic device enclosure with integrated GDS^® connector and pogo pads GDS^® connector and docking contacts provide charging and data sync capabilities; compatible with GDS^® Desktop & Wall Docks External USB Type-C connector allows for charging capabilities when GDS^® Uni-Conn^™ docks are not available Complete your solution with IntelliSkin^® Thin-Case^™ compatible ergo accessories—hand strap and shoulder strap Backed by a 3-year warranty

IntelliSkin^® Thin-Case^™ for Tab Active5 & 3

Part #: RAM-GDS-SKIN-SAM93-TCD UPC: 793442021190 Patented & Pats. Pend.

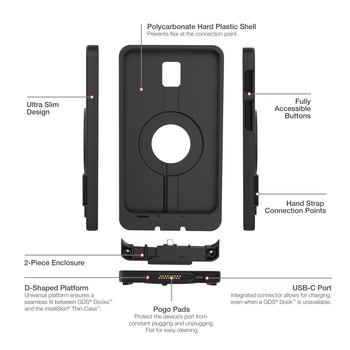

Features

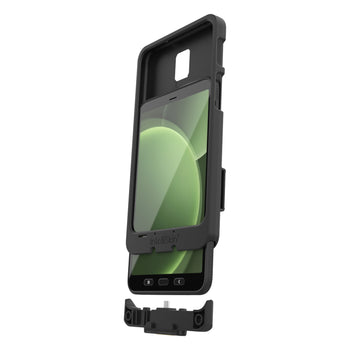

Two-piece, hard plastic device enclosure with integrated GDS^® connector and pogo pads
GDS^® connector and docking contacts provide charging and data sync capabilities; compatible with GDS^® Desktop & Wall Docks

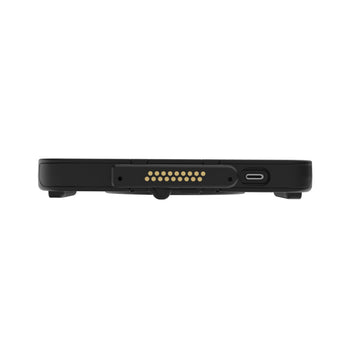

External USB Type-C connector allows for charging capabilities when GDS^® Uni-Conn^™ docks are not available
Complete your solution with IntelliSkin^® Thin-Case^™ compatible ergo accessories—hand strap and shoulder strap
Backed by a 3-year warranty

IntelliSkin<sup>®</sup> Thin-Case<sup>™</sup> for Tab Active5 & 3

Product Information
Overview	The IntelliSkin^® Thin-Case^™ for Tab Active5 & 3 (RAM-GDS-SKIN-SAM93-TCD) is a low-profile, two-piece device enclosure designed for the GDS^® Uni-Conn^™ docking platform. The case features the Distinctive D-Shape^™ integrated USB-C connector with external pogo pads. The robust polycarbonate shell protects your device from daily wear and tear while the complete enclosure makes it difficult for unauthorized users to access the tablet, providing additional peace of mind for tablets mounted in high-traffic environments. The flat, ruggedized pogo pad contacts are made for repetitive docking to protect the device's port and collect less dirt making them easier to clean. An integrated USB Type-C connector at the bottom of the case allows for device charging even when you don’t have a GDS^® Dock^™ available. Always Protected. Always Connected.^®

Product Information

Overview

The IntelliSkin^® Thin-Case^™ for Tab Active5 & 3 (RAM-GDS-SKIN-SAM93-TCD) is a low-profile, two-piece device enclosure designed for the GDS^® Uni-Conn^™ docking platform. The case features the Distinctive D-Shape^™ integrated USB-C connector with external pogo pads. The robust polycarbonate shell protects your device from daily wear and tear while the complete enclosure makes it difficult for unauthorized users to access the tablet, providing additional peace of mind for tablets mounted in high-traffic environments. The flat, ruggedized pogo pad contacts are made for repetitive docking to protect the device's port and collect less dirt making them easier to clean. An integrated USB Type-C connector at the bottom of the case allows for device charging even when you don’t have a GDS^® Dock^™ available. Always Protected. Always Connected.^®

Specifications
hardware included	Assembly Hardware (1) Removal Tool
materials	High strength composite
packaging type	Poly Bag
transfer speed	Up to USB 3.1 @ 5Gbps (via D-Shape Contacts)* Up to USB 2.0 @ 480Mbps (via External USB-C Port)
ports	External USB-C 2.0
Warranty	3 year warranty
Weight	0.4 lb
Additional Information	*USB 3.1 is the maximum transfer speed that the IntelliSkin^® can support, but actual transfer speeds will vary based on selected docks, chargers, and device limitations.

Questions about our products? Email us for support.

Patented & Pats. Pend.

IntelliSkin^® Thin-Case^™ for Tab Active5 & 3

Always Protected. Always Connected.^®

Part#: RAM-GDS-SKIN-SAM93-TCD

UPC: 793442021190

$97.49

Options

Overview

Features

Two-piece, hard plastic device enclosure with integrated GDS^® connector and pogo pads
GDS^® connector and docking contacts provide charging and data sync capabilities; compatible with GDS^® Desktop & Wall Docks
External USB Type-C connector allows for charging capabilities when GDS^® Uni-Conn^™ docks are not available
Complete your solution with IntelliSkin^® Thin-Case^™ compatible ergo accessories—hand strap and shoulder strap
Backed by a 3-year warranty

hardware included:

Assembly Hardware
(1) Removal Tool

materials:

High strength composite

packaging type:

Poly Bag

transfer speed:

Up to USB 3.1 @ 5Gbps (via D-Shape Contacts)*
Up to USB 2.0 @ 480Mbps (via External USB-C Port)

ports:

External USB-C 2.0

Warranty:

3 year warranty

Weight:

0.4 lb

Additional Information:

*USB 3.1 is the maximum transfer speed that the IntelliSkin^® can support, but actual transfer speeds will vary based on selected docks, chargers, and device limitations.
