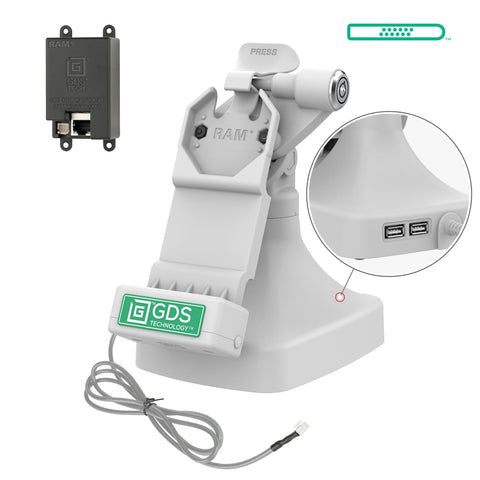

GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE + Data - Gray
One Dock to Connect Them All™
2 USB-A, Locking, Gray
Features

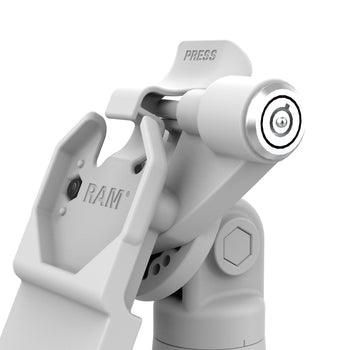

- Light gray, key-locking, powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter

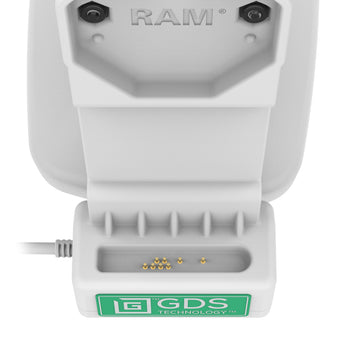

- GDS® Uni-Conn™ dock pogo pins provide Power over Ethernet (PoE) via RJ45 connector

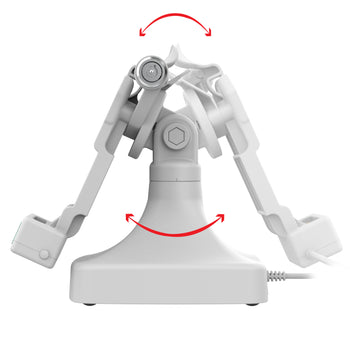

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Weighted base with rubber pads prevents kiosk from moving
- Backed by a 3-year warranty

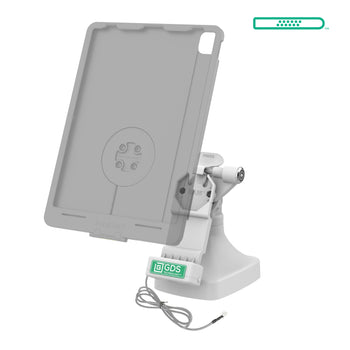

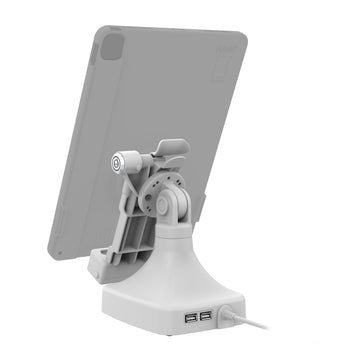

The GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE + Data (RAM-GDS-DOCKLR-D14-U1E-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via RJ45 connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All™ Always Protected. Always Connected.®
GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE + Data - Gray
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE + Data (RAM-GDS-DOCKLR-D14-U1E-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via RJ45 connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included

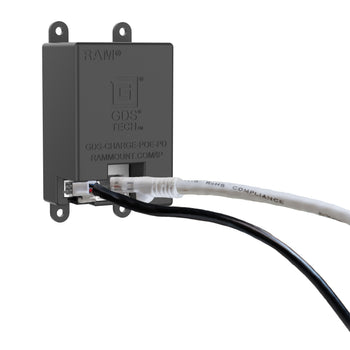

(1) RAM® PoE to PD Charging Module

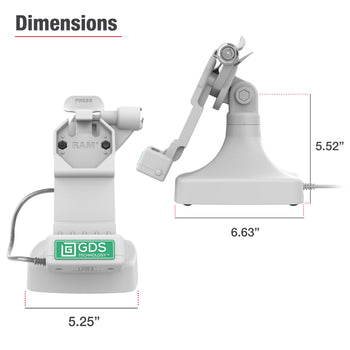

product dimensions
Height from Base to Tilt Bolt: 5.52"
Base Width: 5.13"
Base Depth: 6.63"
materials
High Strength Composite
packaging type
Box
output voltage
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output
24W Max
input connector
JST Male Connector
input cable length
1.5 Meters
ports
(2) USB-A
Warranty
3 year warranty
