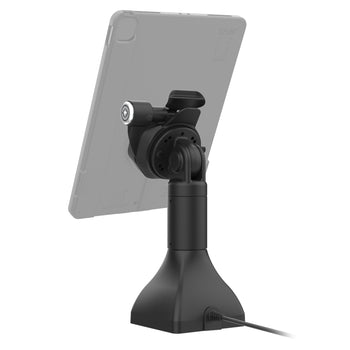

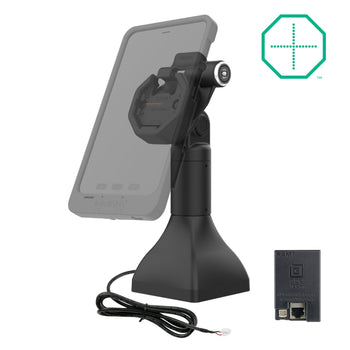

GDS® Uni-Conn™ Powered 7" Locking Pedestal Dock with PoE
One Dock to Connect Them All™
Features
- Key-locking 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
- GDS® connector and pogo pins provide charging via Power over Ethernet (PoE); Mechanical attachment mechanism allows for quick docking and undocking

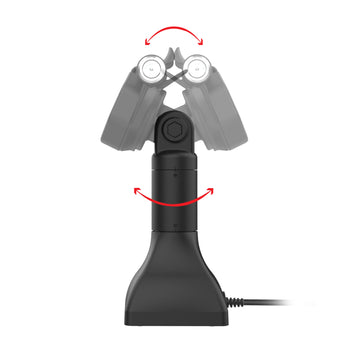

- Dock swivels 180 degrees and enables connected devices to tilt 180 degress
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty
The GDS® Uni-Conn™ Powered 7" Locking Tilt & Swivel Dock with PoE (RAM-GDS-DOCKLR-D11-7-U3E) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®
GDS® Uni-Conn™ Powered 7" Locking Pedestal Dock with PoE
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ Powered 7" Locking Tilt & Swivel Dock with PoE (RAM-GDS-DOCKLR-D11-7-U3E) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®

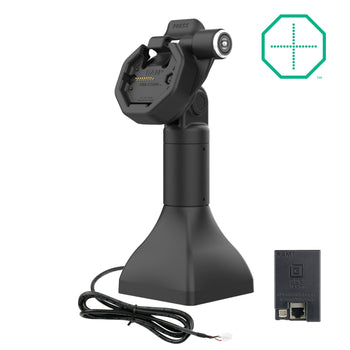

hardware included

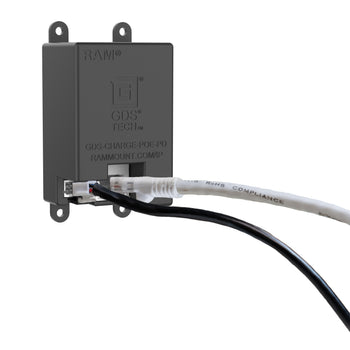

(1) RAM® PoE to PD Charging Module

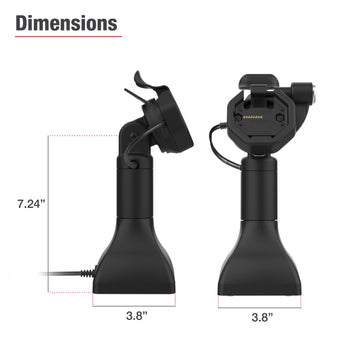

product dimensions
Height from Base to Tilt Bolt: 7.24"
Base Width: 3.8"
Base Depth: 3.8"
materials
Powder coated steel
High Strength Composite
packaging type
Box
output voltage
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output
20W Max
input connector
JST Male Connector
input cable length
1.5 Meters
Warranty
3 year warranty
