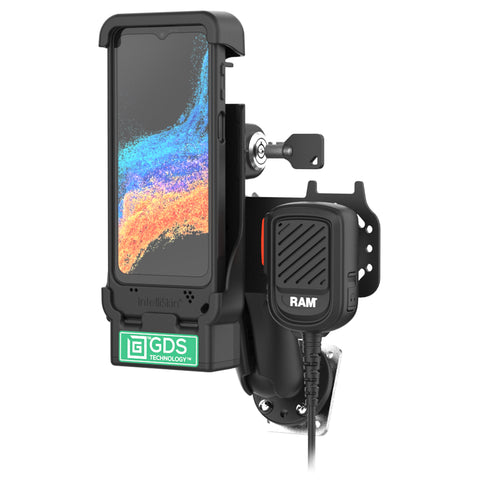

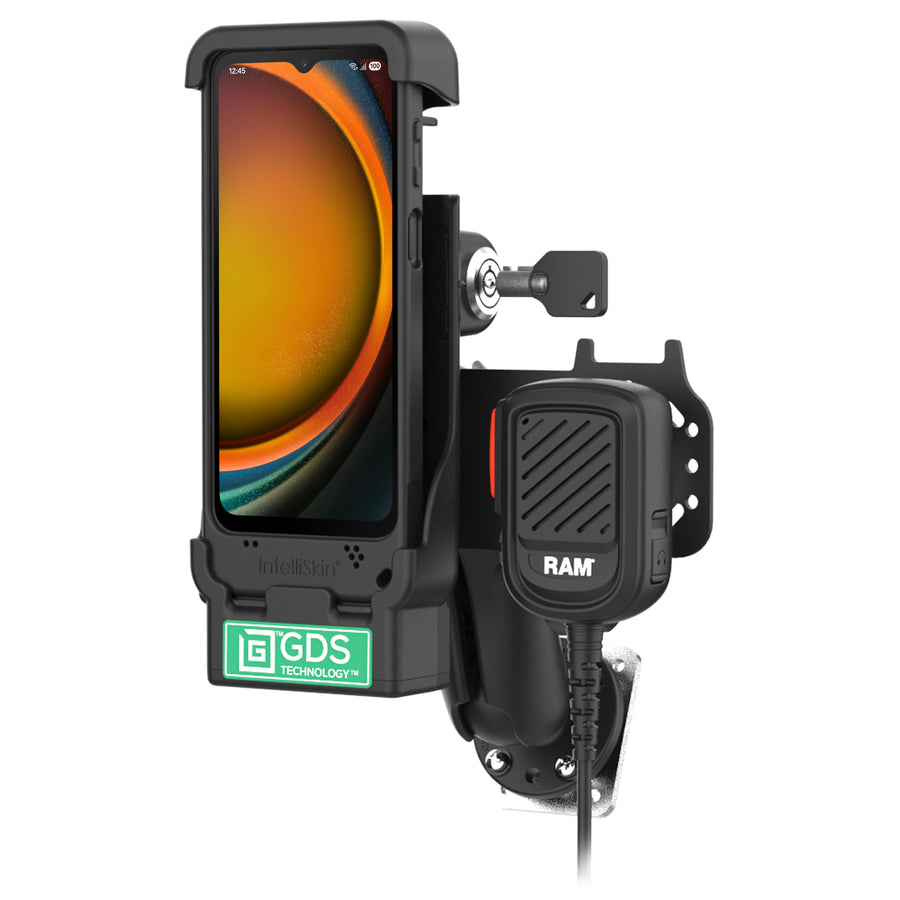

GDS® Locking PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat
Overview
The GDS® Locking PTT Speaker Mic Kit for XCover7 Pro/6 Pro - ESChat (RAM-GDS-DOCKL-V15-SAM84-RSM4) delivers a complete solution for enabling reliable Push-to-Talk over Cellular (PoC) communication. Built specifically with the rugged Samsung XCover6 Pro in mind, this kit includes a form-fit GDS® Dock™, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). The RSM provides dependable push-to-talk functionality through a USB-C connection, optimized for ESChat applications. Plus, locking knobs offer theft deterrence, keeping your gear secure in the field.
Features
- Spring-loaded powered dock featuring USB-C device connection designed for the Samsung XCover7/6 Pro
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- Locking knobs provide theft deterrence for added security
- GDS® Dock™ uses an integrated pogo pin connector to provide high-speed charging
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

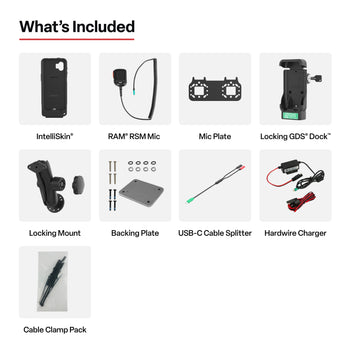

hardware included:
(1) IntelliSkin® for XCover7 Pro & 6 Pro
(1) GDS® Dock™ (Locking)
(1) Remote Speaker Mic with Mounting Plate
(1) Mic Bracket
(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(1) USB-C Splitter Cable
(3) Cable Clamp Kits
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Box
power specifications:
Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67
output voltage:
5V - 12V @ 3A
power output:
15W
input connector:
USB Type-C
input cable length:
380mm
Weight:
5.75 lb
