GDS® Uni-Conn™ Powered Tilt & Swivel Dock with PoE + Data
One Dock to Connect Them All™
2 USB-A, Non-Locking, Black
Features

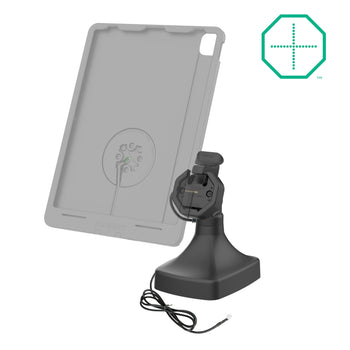

- Free-standing Kiosk dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads

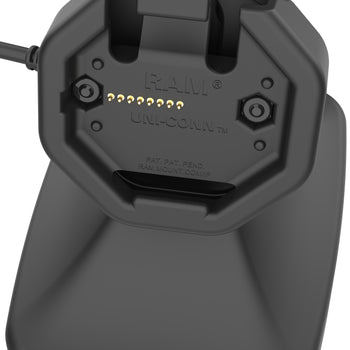

- GDS® connector and pogo pins provide charging via Power over Ethernet (PoE); Mechanical attachment mechanism allows for quick docking and undocking

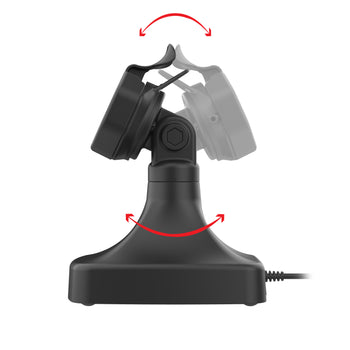

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Weighted base with rubber pads prevents kiosk from moving
- Backed by a 3-year warranty

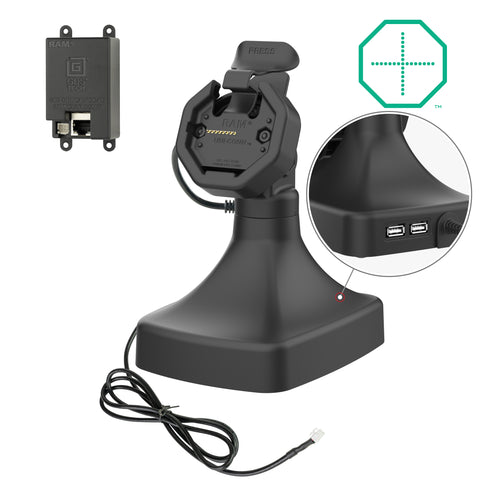

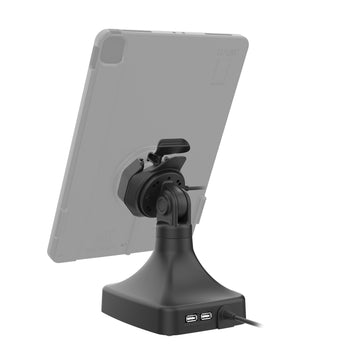

The GDS® Uni-Conn™ Powered Tilt & Swivel Dock with PoE + Data (RAM-GDS-DOCK-D14-U3E-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, ideal for customer-centric industries like retail, hospitality, food service, and more. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via RJ45 connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. One Dock to Connect Them All™ Always Protected. Always Connected.®
GDS® Uni-Conn™ Powered Tilt & Swivel Dock with PoE + Data
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ Powered Tilt & Swivel Dock with PoE + Data (RAM-GDS-DOCK-D14-U3E-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, ideal for customer-centric industries like retail, hospitality, food service, and more. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via RJ45 connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included
(1) RAM® PoE to PD Charging Module

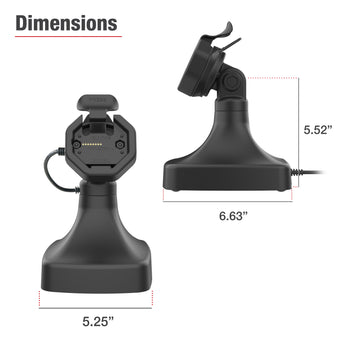

product dimensions
Height from Base to Tilt Bolt: 5.52"
Base Width: 5.13"
Base Depth: 6.63"
materials
High Strength Composite
packaging type
Box
output voltage
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output
24W Max
input connector
JST Male Connector
input cable length
1.5 Meters
ports
(2) USB-A
Warranty
3 year warranty
