Non-Locking, Gray

Features

  • Light gray, free-standing, powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
  • GDS® Uni-Conn™ dock pogo pins provide Power over Ethernet (PoE) via RJ45 connector
  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
  • Weighted base with rubber pads prevents kiosk from moving
  • Backed by a 3-year warranty
GDS® Uni-Conn™ Tilt & Swivel Dock with PoE - Gray
One Dock to Connect Them All™
Part#:RAM-GDS-DOCK-D14-U1E-GRY UPC:793442023835 Patented & Pats. Pend.
The GDS® Uni-Conn™ Tilt & Swivel Dock with PoE - Gray (RAM-GDS-DOCK-D14-U1E-GRY) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via RJ45 connection. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All™ Always Protected. Always Connected.®

hardware included

(1) RAM® PoE to PD Charging Module

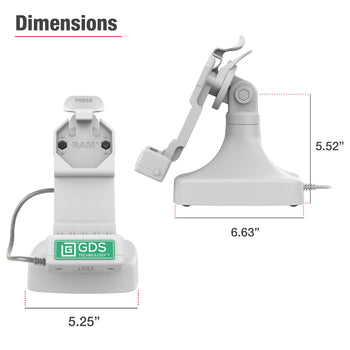

product dimensions

Height from Base to Tilt Bolt: 5.52"
Base Width: 5.13"
Base Depth: 6.63"

materials

High Strength Composite

packaging type

Box

output voltage

USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A

power output

24W Max

input connector

JST Male Connector

input cable length

1.5 Meters

Warranty

3 year warranty
