2 USB-A, Non-Locking, Gray

Features

  • Light gray, free-standing, powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
  • GDS® Uni-Conn™ dock pogo pins provide charging via USB-C

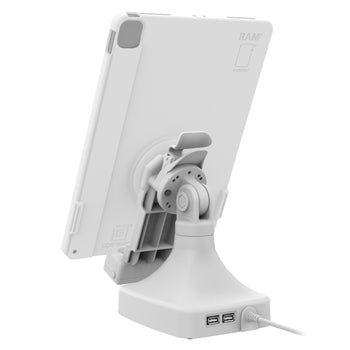

  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
  • Weighted base with rubber pads prevents kiosk from moving
  • Backed by a 3-year warranty

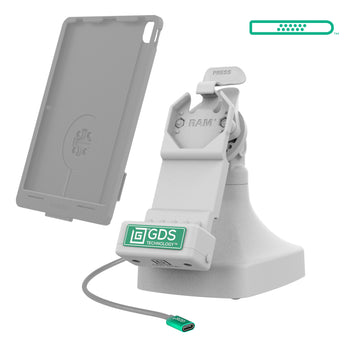

GDS® Uni-Conn™ Tilt & Swivel Dock with USB-C + Data - Gray
One Dock to Connect Them All™
Part#:RAM-GDS-DOCK-D14-U1C-2A-GRY UPC:793442023774 Patented & Pats. Pend.
The GDS® Uni-Conn™ Tilt & Swivel Dock with USB-C + Data (RAM-GDS-DOCK-D14-U1C-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, ideal for customer-centric industries like retail, hospitality, food service, and more. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via USB-C connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that provide theft deterrence and prevent it from sliding around on surfaces. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All™ Always Protected. Always Connected.®

hardware included

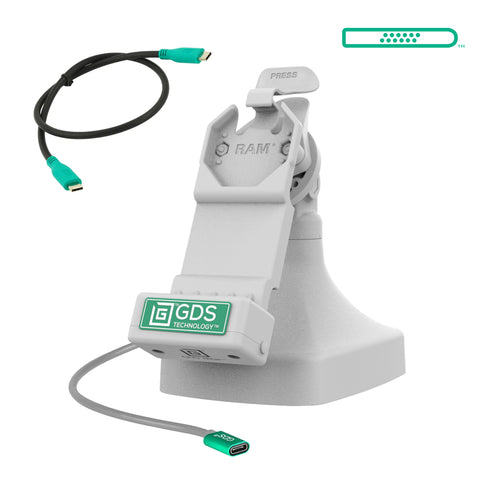

(1) 1 Meter USB-C 2.0 Male to Male Cable

product dimensions

Height from Base to Tilt Bolt: 5.52"
Base Width: 5.13"
Base Depth: 6.63"

materials

High Strength Composite

packaging type

Box

output voltage

USB-C Tablets: 5V - 20V @ 3A Max
mUSB Tablets: 9V @ 1.67A Max

power output

60W Max

input connector

USB Type-C Female

input cable length

1.5 Meters

ports

(2) USB-A

Warranty

3 year warranty
