7", Non-Locking, Black

Features

  • 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • GDS® connector and pogo pins provide charging via USB-C; Mechanical attachment mechanism allows for quick docking and undocking

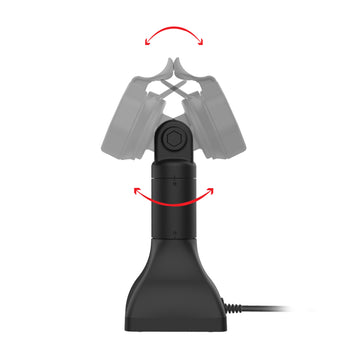

  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
  • Install dock to any surface with drill-down base
  • Backed by a 3-year warranty

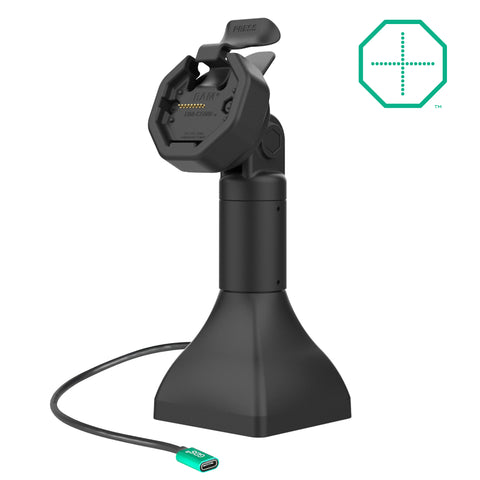

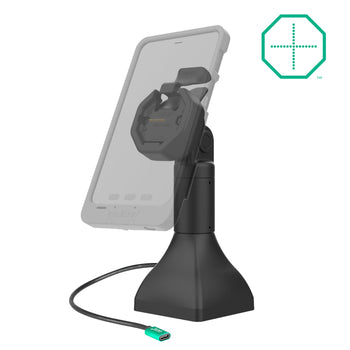

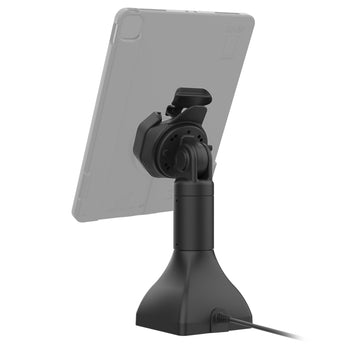

GDS® Uni-Conn™ Powered 7" Pedestal Dock with USB-C
One Dock to Connect Them All™
Part#:RAM-GDS-DOCK-D11-7-U3C UPC:793442024412 Patented & Pats. Pend.
The GDS® Uni-Conn™ Powered 7" Pedestal Dock with USB-C (RAM-GDS-DOCK-D11-7-U3C) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via USB-C connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All™ Always Protected. Always Connected.®

hardware included

(1) 1 Meter USB-C 2.0 Male to Male Cable

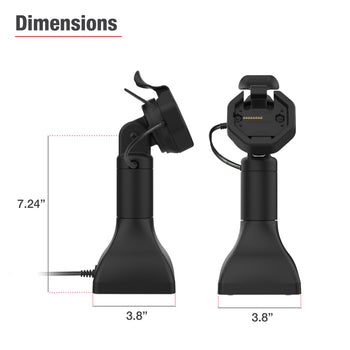

product dimensions

Height from Base to Tilt Bolt: 7.24"
Base Width: 3.8"
Base Depth: 3.8"

materials

Powder coated steel
High Strength Composite

packaging type

Box

output voltage

USB-C Tablets: 5V - 20V @ 3A Max
mUSB Tablets: 9V @ 1.67A Max

power output

60W Max

input connector

USB Type-C Female

input cable length

1.5 Meters

Warranty

3 year warranty
