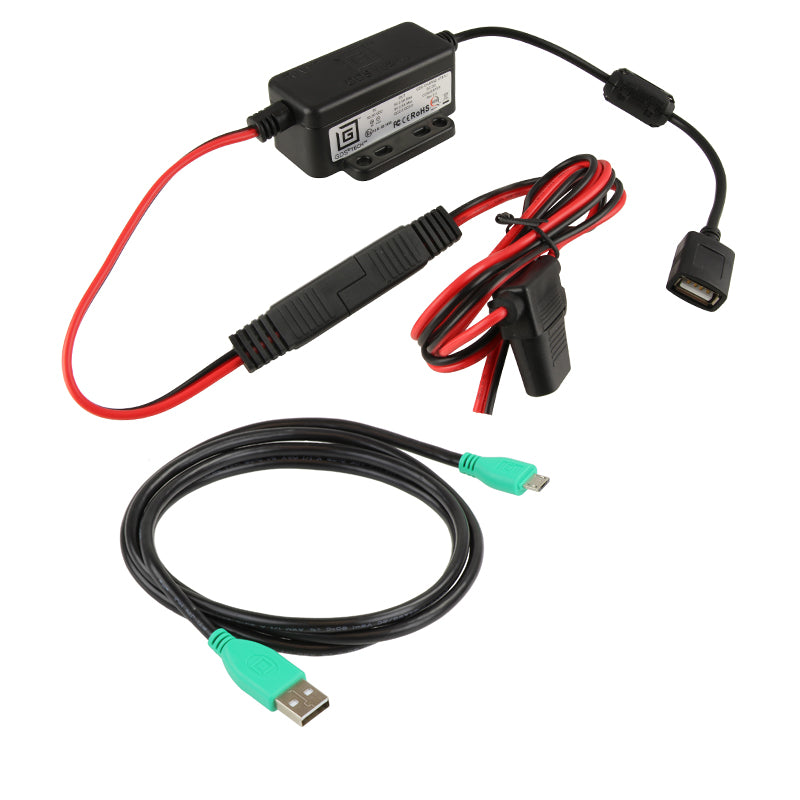

GDS® Modular 10-30V Hardwire Charger with mUSB Cable
Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-MUSB-V7B1U
UPC: 793442110368
$34.49

Overview

The GDS® Modular Hardwire Charger with mUSB cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB 2.0 cable with USB Type-A male connection and mUSB male connection
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

packaging type:

Poly Bag

input voltage:

10-30VDC

output voltage:

5-9VDC*

output current:

2.5A max

input connector:

mUSB 2.0 Female

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

.2 Meter

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications:

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty:

3 year warranty

Weight:

0.45 lb

Additional Information:

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
