Patent Pending

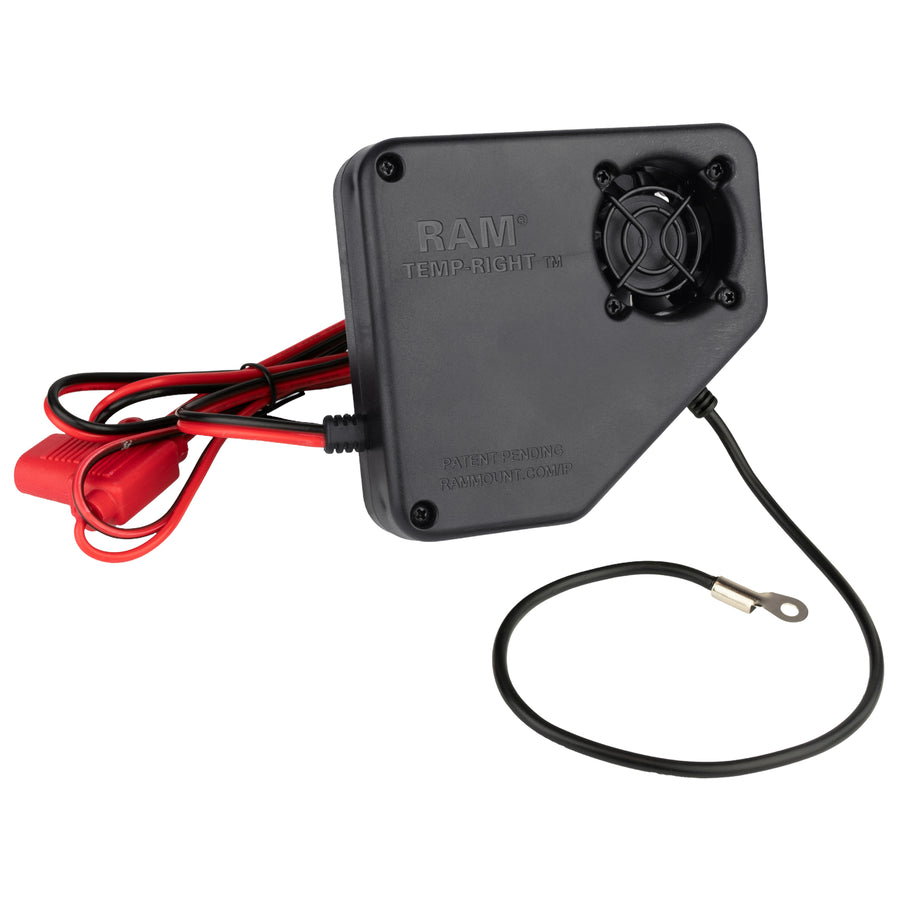

RAM® Temp-Right™ Dock Heating Module for Samsung Tab Active5 & 3
Part#: RAM-DOCK-HEATER1-CU
UPC: 793442016196
$192.99

Overview

The RAM® Temp-Right™ Dock Heating Module for Samsung Tab Active5 & 3 GDS® and RAM® vehicle docks (RAM-DOCK-HEATER1-CU) is a self-regulating heater module available as an add-on accessory when your Tab Active5 & Tab Active3 docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan. The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right™. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases.

Features

  • Heater module designed specifically for Samsung Tab Active5 & Tab Active3 RAM® and GDS® tablet docks
  • Regulates the tablet's operating temperature by generating forced heat to the back of the tablet
  • Integrated thermistor detects temperature and automatically activates the heater when temps reach below approximately 32-degrees fahrenheit
  • Built-in safety plunger deactivates the heater when the device is undocked
  • Backed by a 3-year warranty

hardware included:

Assembly Hardware

materials:

High strength composite
Stainless Steel

packaging type:

Poly Bag

input voltage:

11-16VDC

output voltage:

12V @ 7.5A

power output:

85W

output current:

7.5A max

input cable length:

1 Meter

operating temperature:

-30°C to +70°C

storage temperature:

-40°C to +85°C

regulatory:

WEEE and RoHS Compliant

Warranty:

3 year warranty

Weight:

0.71 lb

Additional Information:

24-60VDC Input (12VDC Output) Charger is required for this module. See RAM-GDS-CHARGE-V16U

Compatible Docks:

RAM-HOL-SAM60CPNU
RAM-HOL-SAM60CPN-1AU
RAM-HOL-SAM60PD2NU
RAM-HOL-SAM60CP-NFCU
RAM-HOL-SAM58CPKLNU
RAM-HOL-SAM58CPKLN-1AU
RAM-HOL-SAM58PD2KLNU
RAM-HOL-SAM58CPKL-NFCU
